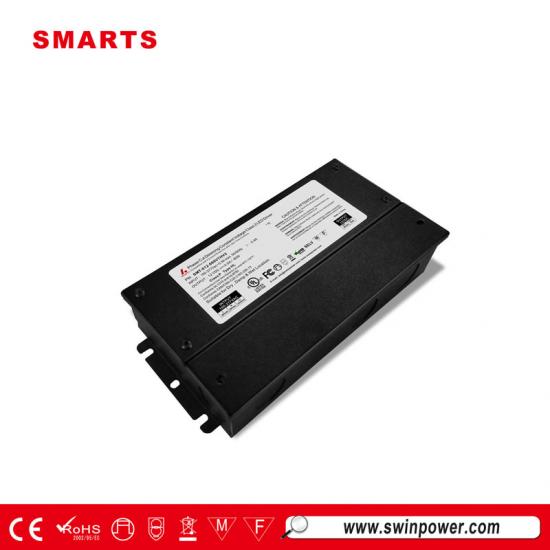

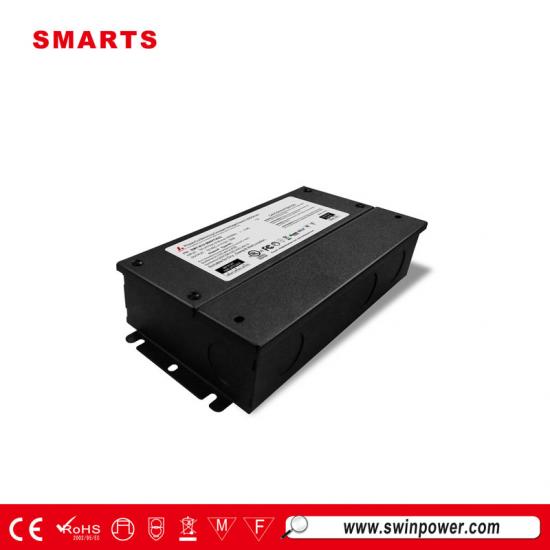

PWM output 12 volt 5a dc power supply led dimmable drivers for lighting

PWM dimming output 12 volt 5a power supply is matching well with magnetic low voltage dimmers (MLV), Electronic Low Voltage (ELV) Dimmers, leading edge and trailing edge triac dimmers.It can be matched with Lutron Triac dimmer 220v for a 0-100% dimming effect.

  • Brand:

    SMARTS
  • Item No.:

    SMT-012-060VTHV2
  • Input Voltage:

    100-277v
  • Output Voltage:

    12/24vdc
  • Output Current:

    5a
  • Working Mode:

    constant voltage
  • Dimming mode:

    triac dimming
  • Size:

    188*94.5*40mm
  • Certification:

    UL(E507826),CE,FCC,ROHS approval
Products description

PWM output 12 volt 5a dc power supply led dimmable drivers for lighting


Flicker-free triac dimming 12 vdc power supply has better performance than the SloanLED dimming power supply.operated with no noise that make them the professional’s choice when it comes to smooth dimming.


  Specification


model

SMT-012-060VTH  (1.0 version)

SMT-012-060VTHV2  (2.0 version)

SMT-024-060VTH  (1.0 version)

SMT-024-060VTHV2  (2.0 version)

Output

DC Voltage

12V

24V



Voltage Accuracy

±0.5V

±0.5V



Voltage Regulation

±0.5%



Rated current

5.00A

2.50A



Load Regulation

±1%



Rated power

60W

60W

Input

Voltage Range

100-277V AC



Frequency Range

4763HZ



Power Factor ( Typ.

0.98@120VAC  0.95@277VAC

0.98@120VAC  0.95@277VAC



Full Load EfficiencyTyp.

>83%

>83%



AC CurrentTyp.

0.9A/110VAC



Inrush Current Typ.

14A, 50%, 780us



Leakage current

<0.50mA



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed



Over Loading

≤120% Hiccup mode,recovers automatically after fault condition is removed



Over voltage

140VAC(90~135V) , ≦285VAC(170~277V)

Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz2G 10min./1 cycleperiod for 60min.each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310



Withstand voltage

I/P-O/P:3.75KVAC



Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH



EMC EMISSION

FCC Part 15 B



EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547

Alight industry level surge4KV

Others

Weight

About 1.1Kg



Size

1.0 version: 188*92*26mm(L*W*H); 2.0 version: 188*94.5*40mm(L*W*H)



packing

10PCS/CTNL*W*H

Notes

1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and

25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

 pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

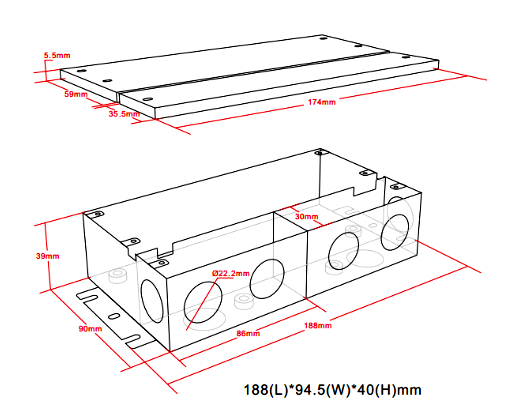

   Mechanical Specification


12 volt 5a power supply

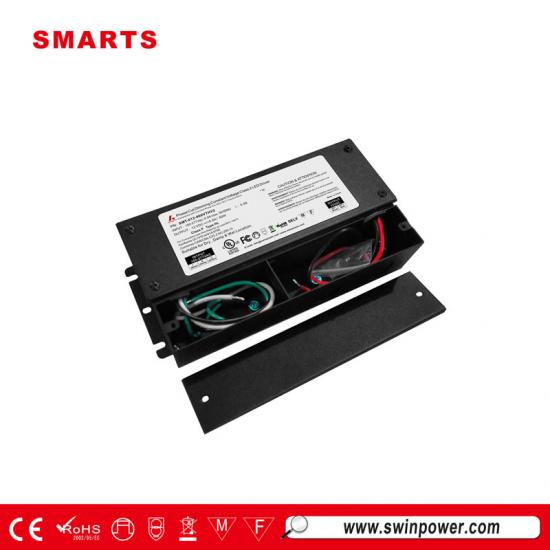

Input power cord: AC (L), (N), and earth wire (G)

Output Red isDIM+,Black isDIM-


  Compatible Dimmer Type

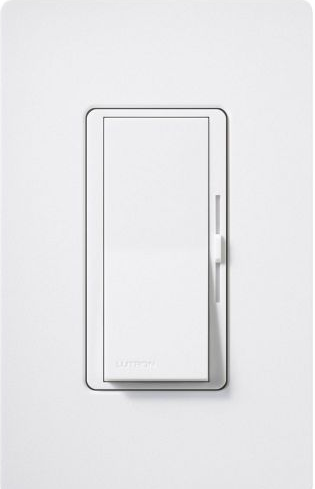

DIVA SERIES ELECTRONIC DIMMER WITH 5 WATT MINIMUM LOAD. CHECK 12VDC LED POWER SUPPLY SPECS FOR DIMMER COMPATIBILITY USING AN ELECTRONIC LOW VOLTAGE DIMMER.

12 vdc power supply
led dimmable driver wiring diagram


  Related Products


led drivers for lighting

led drivers for lighting are UL CE ROHS approval.it is widely used in Shopping malls, commercial accent lighting, Hotel lighting

Bar and Lounge lighting etc...

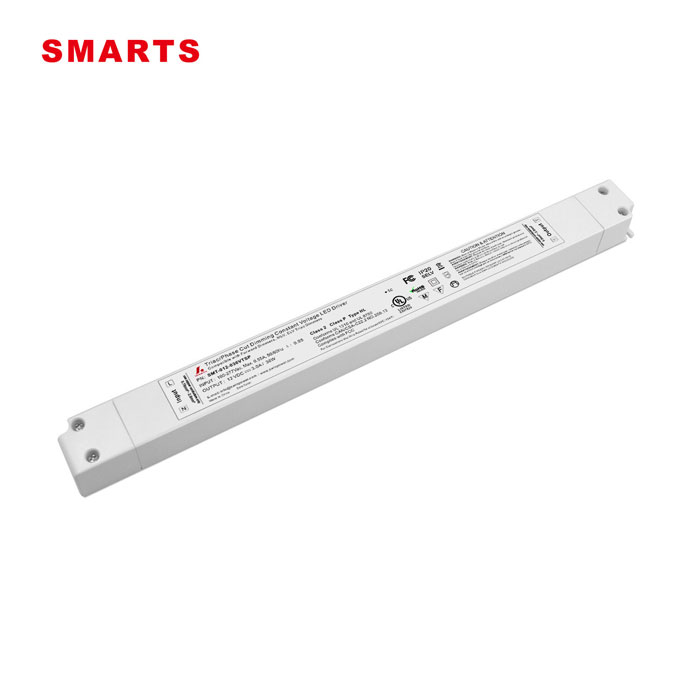

Mode:SMT-012-036VTSP
