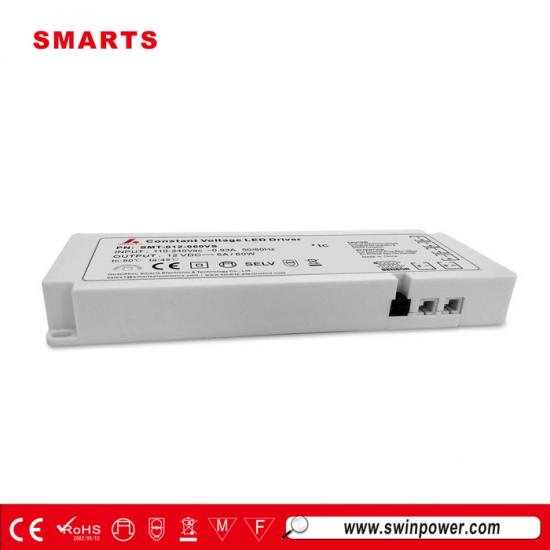

led driver 230vac to 12vdc for led strip lighting driver
This product is intended only for 230VAC input with a 12VDC 5A output of 60 watts. We recommend a load of 90% or less (54W) unless being used in a cold environment for LED pannel lights from Worship Productions.
Specification
| SPECIFICAION | |||||
| MODEL | SMT-012-060VS | ||||
| OUTPUT | DC VOLTAGE | 12V | |||
| RATED CURRENT | 5A | ||||
| CURRENT RANGE | 0-5A | ||||
| RATED POWER | 60W | ||||
| RIPPLE&NOISE(max) | ＜150mV | ||||
| VOLTAGE TOLERANCE | ±0.5V | ||||
| INPUT | VOLTAGE RANGE | 100-265VAC | |||
| FREQUENCY RANGE | 47-63Hz | ||||
| POWER FACTOR(Typ.) | no PFC | ||||
| EFFICIENCY(Typ.) | >85% | ||||
| AC CURRENT(Typ.) | 0.38A/220VAC | ||||
| PROTECTION | Short circuit | Protection type:Hiccpe mode,recovers automatically after condition is removed | |||
| Overload | 5.5A | ||||
| ENVIRONMENT | WORKING TEMP. | -10~+40℃ (Refer to output load derating curve) | |||
| STORAGE TEMP | -40~+80℃ | ||||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13;SELV;SAA approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | ||||
| NOTE |
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature. 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor. 3.Tolerance:includes set up tolerance,line regulation and load regulation. |
||||
 |
 |
 |
 |
Mechanical Specification
① AC socket:DB-8
② Sensor switch socket:5557-3.0-2*2AW
③ DC socket:TCJ8H 6PCS
Cable Model of input : 2 pins plug power cord (VDE 18AWG wires)
output cord suggestion: H03VV-F 2*0.75mm2(red, black)
Compatible Led cabibet lights Type
Lighting up with led power driver 60w 12v for some LED strip and cabinet lights for LED Panel Depot Canada.
