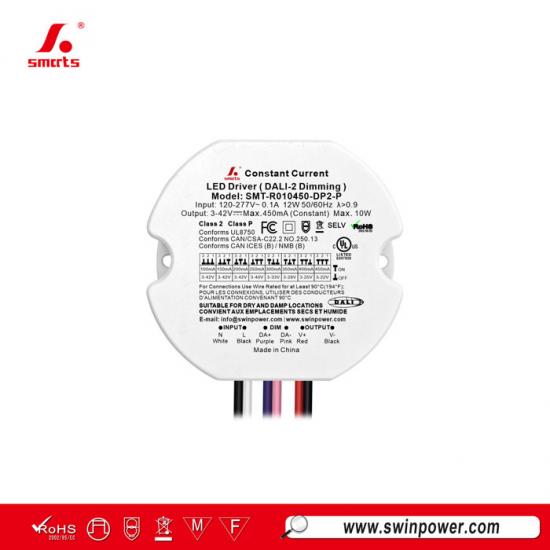

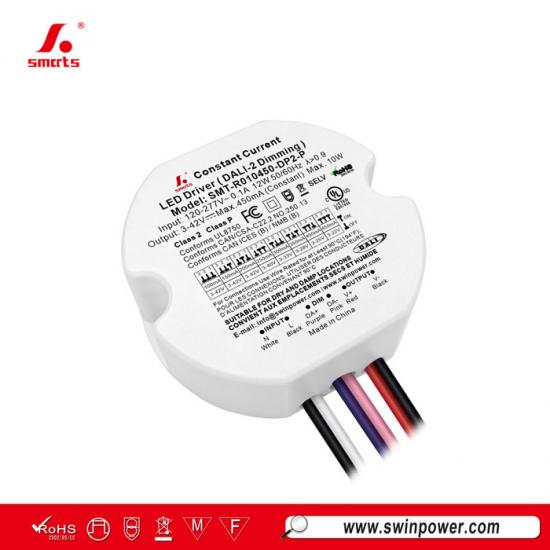

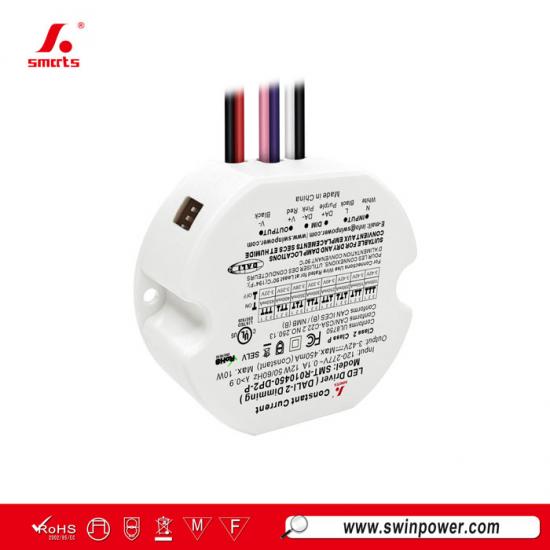

10W DALI-2 Dimmable Constant Current Round LED Driver for indoor
The DIP switch sets 100–450mA to match your module, and DALI-2 dimming led driver runs flicker-free from 1% to 100% — perfect for mood scenes and daylight-linked control. The compact round plastic housing fits tight spaces and dry/damp locations. Silent fanless cooling, simple install, backed by a 7-year warranty.

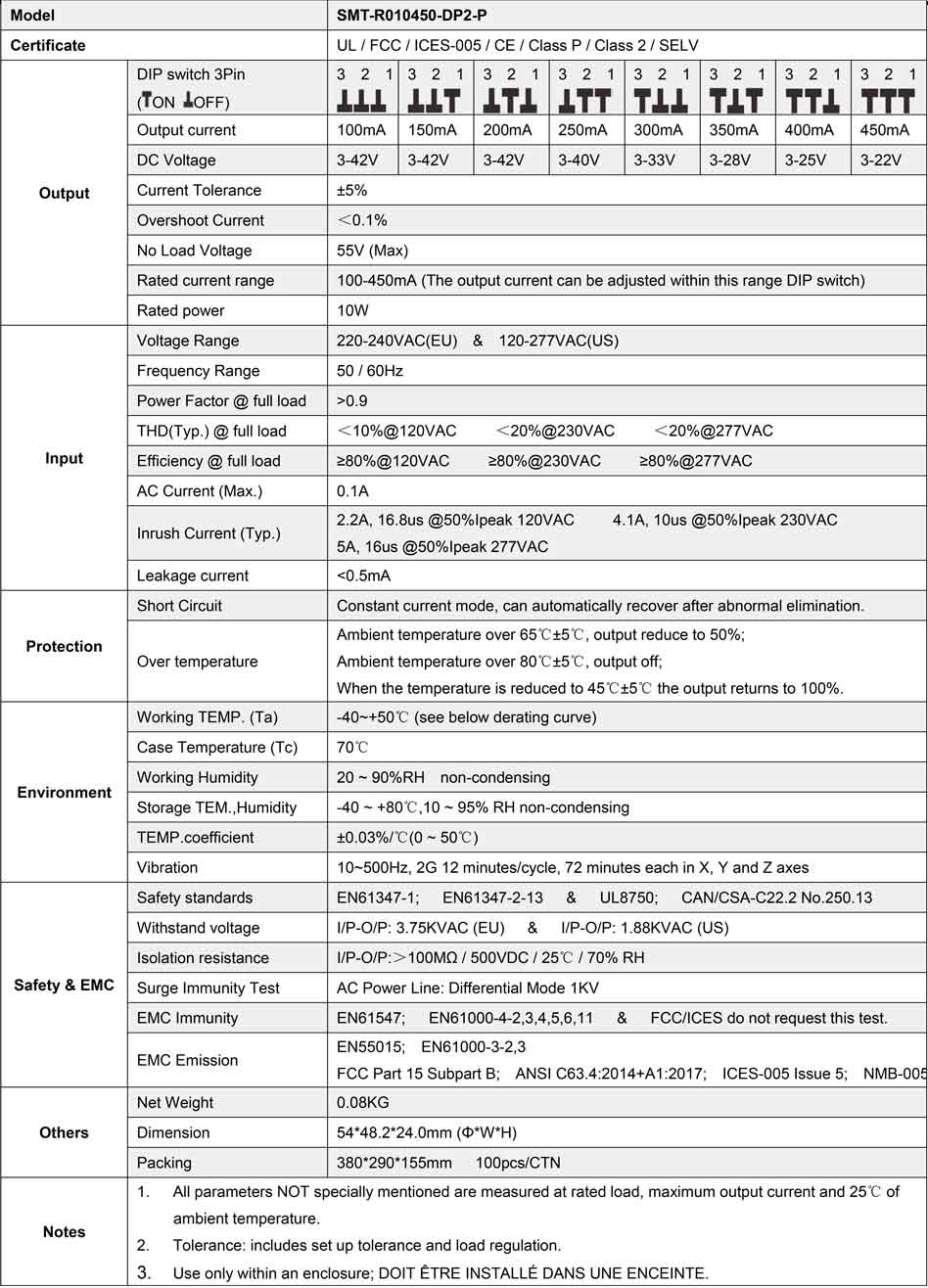

Specification
|
|
 |
 |
 |

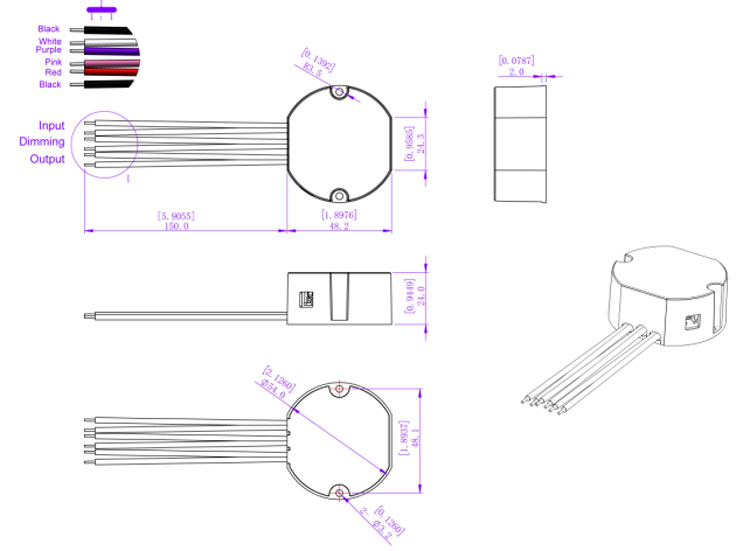

Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
| Dimming electronic wire | Purple(DIM+) Pink(DIM-) (2*22AWG) |
Dimming Operation

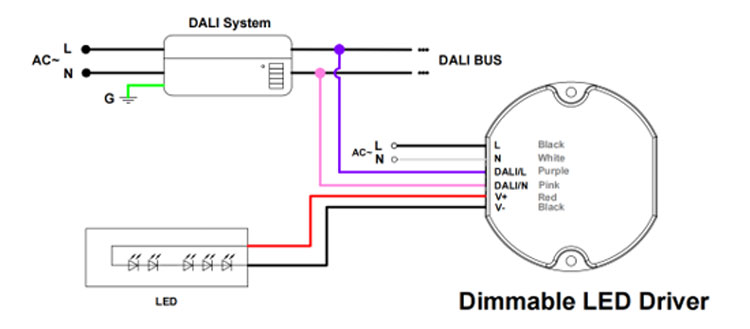

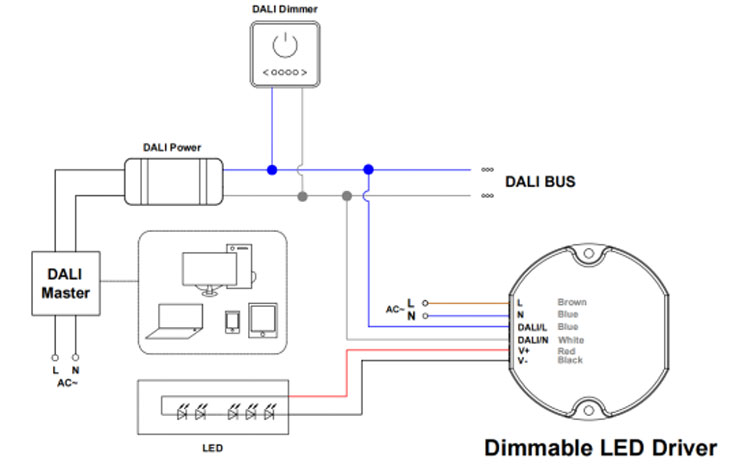

Connection Diagram for DALI Dimmer:
Related Products
|
|

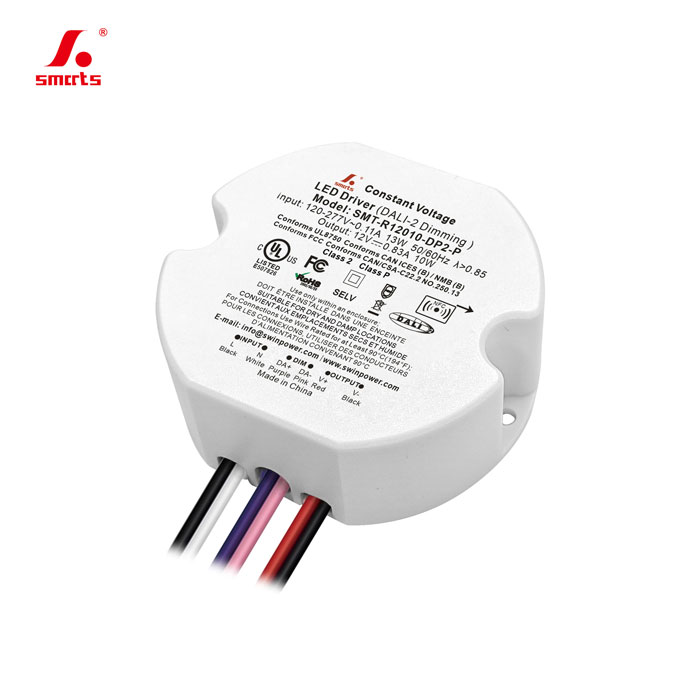

The 10W round plastic LED driver pairs constant-voltage output with DALI-2 digital dimming — smooth, flicker-free control from 1% to 100% at 1% depth, perfect for small LED strips and accent fixtures.
Model: SMT-R12010-DP2-P Input Voltage: 100-277Vac
Dimming Mode: dali-2 dimmable
|
