7 years warranty 36W linear ultra slim dali interface dimming led driver

24v 36w DALI dimmable led driver is a model of slim size dali dimmable led driver,Can be perfectly installed in Ushio America’s SWP series slim,the Input voltage range 100-277VAC ,pls note that the Dimming cable 2*18AWG,DIM (+) Purple  to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)

  • Brand:

    SMARTS
  • Item No.:

    SMT-024-036VMSW
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    24V
  • Output Current:

    1.5A
  • Working Mode:

    constant voltage
  • Dimming mode:

    dali dimmable
  • Size:

    262*32*20mm
  • Certification:

    CE ROHS
Products description

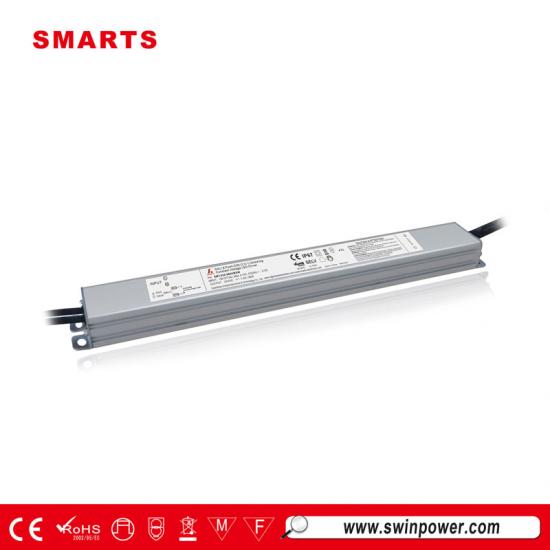

7 years warranty 36W linear ultra slim dali interface dimming led driver


the series of ultra slim led driver 24v need you know that Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged,waterproof grade IP67, can replace pierlite 36W LED power supply to install in humid place.


 Specification

model

SMT-012-036VMSW

SMT-024-036VMSW

Output

DC Voltage

12VDC

24VDC



Voltage Accuracy

±5%

±5%



Rated current

3Amp

1.5Amp



Rated power

36W

36W



Voltage Regulation

±0.5%



Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC



Frequency Range

4763HZ



Power Factor ( Typ.

PF≧0.99/110V ;  PF≧0.98/277V



THD(Typ. ) @ full load

<10%@120VAC  <15%@277VAC



Full Load EfficiencyTyp.

>84%

>85%



AC CurrentTyp.

0.5A



Inrush CurrentTyp.

5A, 50%, 960us @120VAC;   13A, 50% , 1ms @277VAC



Leakage current

<0.5mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.



Over Loading

≤120% shut down o/p voltage, re-power on to recover



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13



Withstand voltage

I/P-O/P:1.88KVAC



Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH



EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B



EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.35Kg



Size

260*32*20mm (L*W*H)



packing

290*270*160mm , 50PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

  Label   slim dali interface dimming led driver
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


 Analysis problem


Question:

In the diagram spec sheet it show the dimmer on the N (neutral)? Normally Triac the dimmer is on the L Line?

Answer:

Dimmer can be connected on the N (neutral) or on the L (Line). Depending on you.


 Features


·Output constant voltage

·Input voltage range 100-277VAC

·CE ROHS approval

·Built-in PFC function / Efficiency > 85% / PF> 0.99

·Dimming range: 0~100%

·Protections:short circuit/over voltage/over heat

·IP67 design for indoor dry,wet or damp environment installations

·Cooling by free air convection

·Dali dimming

·Full protection aluminum housing, for dry, damp, wet location

·Strong compatibility, flicker-free dimming

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lighting

·7 years warranty
