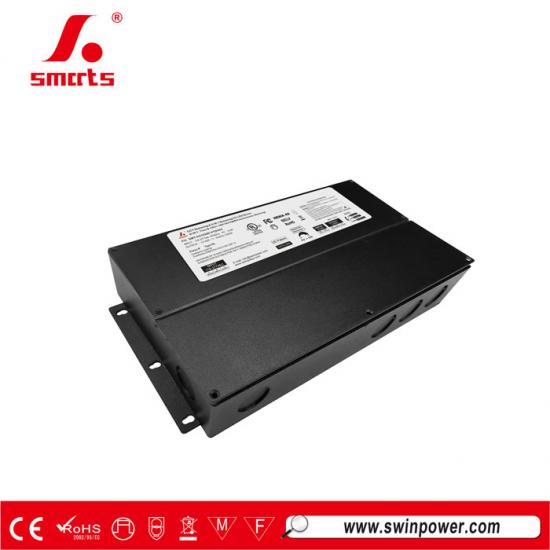

277vac triac waterproof dimmable led driver 0 10v power supply 12v/24v 200w
|
SMT-CV12200-VTDHV3 new all-in-one constant voltage 5 in 1 dimming led power supply is compatible with pwm and step-down output, and the output mode can be selected by the paddle switch to meet the different needs of users |
Specifications
| Model Number | SMT-CV12200-VTDHV3 | SMT-CV24200-VTDHV3 |
| OUTPUT | ||
| Rated Power | 200W | 200W |
| Rated Voltage | 12V | 24V |
| Rated Current | 16.6A | 8.33A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| INPUT | ||
| Voltage Range | 100-277V | |
| Frequency Range | 47-63Hz | |
| Power Factor(typ.) | 0.98@120VAC 0.95@277VAC Full load | |
| Total Harmonic Distortion | THD< 20%@120VC/277VAC; | |
| Efficiency(Typ.) | 85%@120VAC 86%@277VAC | 86% @ 120VAC 87% @277VAC |
| AC Current(Typ.) | 2.32A | |
| Inrush Current(Typ.) | 15A, 50%, 1.4ms @120VAC; 30A, 50% 1.4ms @277VAC | |
| Leakage Current | <0.5mA/ 120VAC | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | |
| Over Load | ≤120% shut down o/p voltage, re-power on to recover after fault condition removed | |
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 ℃ | |
| Max. Case Temp. | Tcase=+90℃ | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||
| Dimension | 254x132x42.5mm (L*W*H) N.W: 1.86kg | |
| Packing | 10pcs/CTN G.W:19.8KG SIZE: 300*285*250mm | |
 |
 |
 |
 |
Mechanical Specification
Dimming Operation
Compatible Lighting Type

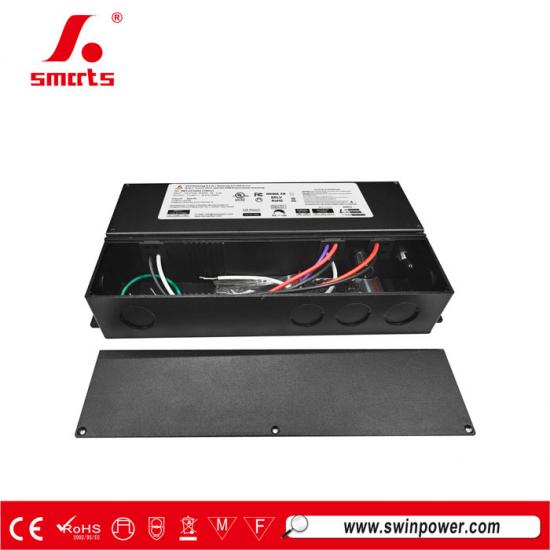

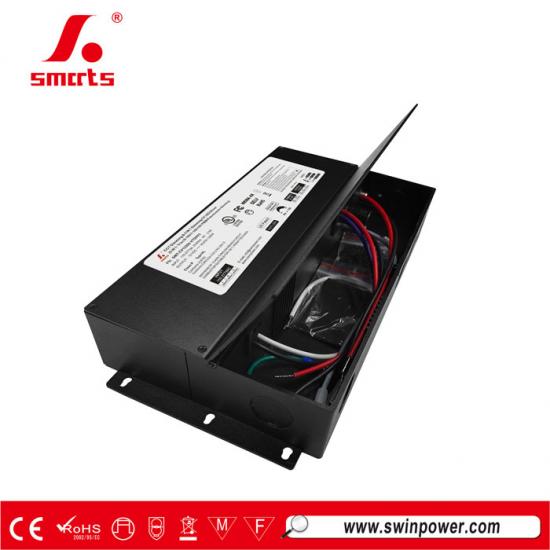

The new smarts dimming 200W led driver has a patented design of a flip junction box, which can adjust the space of the junction box, making the installation more simple and convenient. Super low loading request, works perfect at 10-100% load.
Related Products
|
|

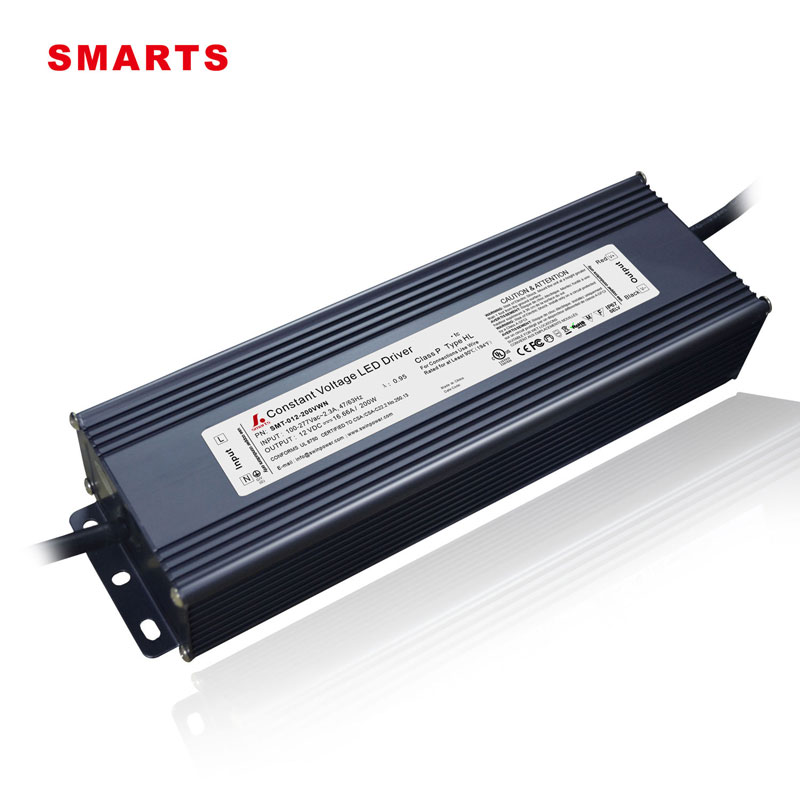

Non dimming 200W LED driver is suitable for indoor and outdoor wet or dry lighting projects. Constant voltage working mode, safe and reliable
Mode：SMT-012-200VWN intput voltage：100~277V AC Certification: UL cUL Size：256*78*47mm（L*W*H） Weight：1.5kg/pcs |
