12v 300w 0-10v dimmable constant voltage led drivers for klusdesign led strip WP-K-1220-12
SMT-012-300VDHJ is driver led 12v dimmable with junxtion box, which could protect klusdesign led strip WP-K-1220-12 very well, easy to install and safe to use.
Specification
Model
SMT-012-300VDHJ (1.0 version)
SMT-012-300VDHJWV2 (2.0/3.0 ver.)
SMT-024-288VDHJ (1.0 version)
SMT-024-288VDHJWV2 (2.0/3.0 ver.)
Output
DC Voltage
12VDC
24VDC
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±1%
±1%
±1%
Rated current
5*5A
3*4A
Rated power
300W
288W
Input
Voltage Range
100-277VAC
Frequency Range
47-63Hz
Power Factor(Typ.)@ full load
0.99@120VAC 0.95@277VAC
0.99@120VAC 0.95@277VAC
THD(Typ.)@ full load
<20%
<20%
Efficiency(Typ.)@ full load
87%@120V 91%@277VAC
79%
85%@120V 90%@277VAC
AC Current(Max.)
3.4A@100VAC
3.6A@100VAC
Inrush Current (Typ.)
35A ,50%,960us @120VAC ; 43A,50%,1ms @277VAC
12.4A (twidth=430us) @277VAC
Leakage current
<0.50mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading
≤120% Hiccup mode ,recovers automatically after fault condition is removed
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40~+60℃ (see below derating curve)
Working Humidity
20~90%RH, non-condensing
Storage TEMP. Humidity
-40~+80℃,10~95%RH
TEMP .coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P:1.88KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC 47 CFR Part 15 ,Subpart B
Others
Weight
2.2Kg(1.0 version)
Size
1.0 version: 301*108*46mm (L*W*H)
2.0 version: 301*140*45mm (L*W*H) / 3.0 ver.: 301*110*45mm (L*W*H)
packaging
Carton:365*250*245mm, Packaging: 10pcs /CTN G.W.:26.6KG/CTN
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
 |
 |
 |
 |

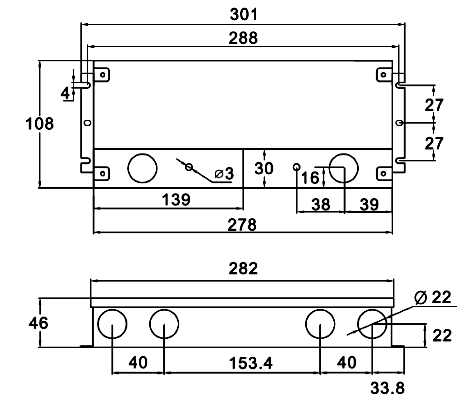

Mechanical Specification
Ø Input wire 18AWG Black and White to be connected to AC L and N ,Green wire go ground,
Ø Output cable 2*16AWG,Red" (+) to LED Positive side (+) , "Black"(-) to LED Negative side (-).
Ø Three groups output cables. of SMT-012-3000VDHJ and two groups of SMT-024-288VDHJ
Ø Dimming cable 2*18AWG,DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
Ø Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Ø Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Derating Curve
0/1-10V / Potentiometer / 10V PWM (3 in 1) Dimmable LED Driver connecting solution:
Compatible Dimmer Type
SMT-012-300VDHJ driver led 12v dimmable can be matched with klusdesign K-1220-12V led strip for indoor use, and provide 7 years warranty with normal use.
Related Products
|
|

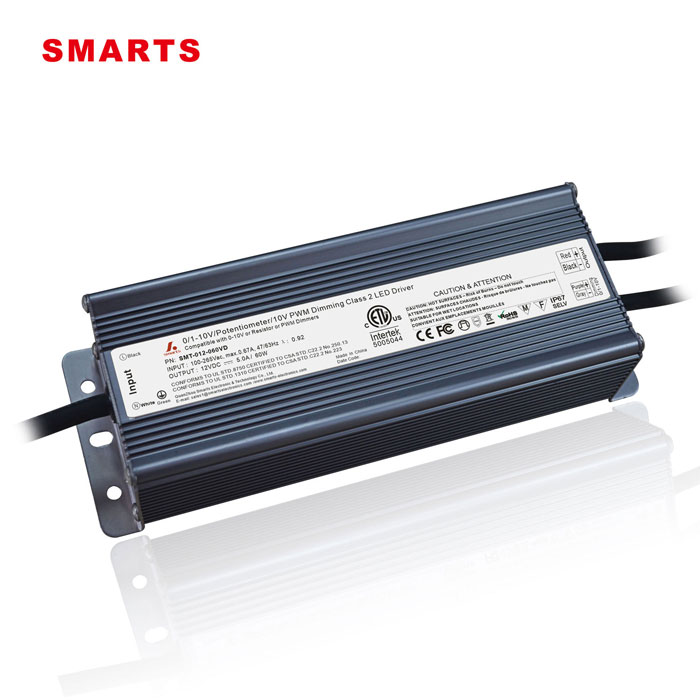

12v led strip light driver 60w with 0-10v dimming could work well with Lutron dimmer according to our dimming recommendation form...
