12V 24V LED Driver Dimmable 250W 300W 100W 120W Manufacturers

replacement led drivers are for use in Canada and USA and covered by 7 year manufacturer limited warranty. Less expensive than magnetic drivers, an electronic LED driver may be preferred for installations with flicker free.  Lux Ultra Slim Tiltable Downlight 6.5W 3000K 650lm 65mm cut out Dimmable 100lm/W Satin nickel finish from integral-led can be work well with 120 watt driver from Swinpower.
  • Brand:

    SMARTS
  • Item No.:

    SMT-012-300VTHW2J
  • Input Voltage:

    110-277VAC
  • Output Voltage:

    12VDC
  • Output Current:

    multi output 5*5A
  • Working Mode:

    Constant Volatge
  • Dimming mode:

    Triac Dimmable & Phase Cut Dimmable
  • Size:

    455*87*60mm
  • Certification:

    cUL/UL, RoHS,FCC, Class p,Class 2,type HL
Products description


12V 24V LED Driver Dimmable 250W 300W 100W 120W Manufacturers


Our replacement led drivers is 12v 24v from 30watts to 384watts available with isolated circuits and overload protection. 277vac dimmable led power supply is designed to work with any recent standard wall dimmer (Triac or Low voltage Magnetic) and allows you to smoothly dim your LED Strips from 100% to 20% without any noise or flickering.


  Specifications


Model

SMT-012-300VTHW2J

SMT-024-288VTHW2J

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Voltage Tolerance

±0.5V

Load Regulation

±1%

±1%

Rated current

12.0A (3*4A)

25.0A (5*5A)

Rated power

288W (3*96W)

300W (5*60W)

Input

Voltage Range

100-277VAC

Frequency Range

47~63HZ

Power Factor(Typ.)@ full load

0.99@120VAC  0.95@277VAC

0.99@120VAC  0.95@277VAC

THD(Typ.)@ full load

<20%

Inrush Current (Typ.)

35A ,50%,960us @120VAC ;  43A,50%,1ms @277VAC

Full Load

Efficiency(Typ.)

>88%

>88%

AC Current(Typ.)

3.4A@100VAC

3.6A@100VAC

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed

Over load

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz 2G 10min./1 cycle,period for 60min.each along X,

Y,Z axes







Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

EMC IMMUNITY

EN61000-4-2,3,4,5,6,11(Surge 4KV)

Others

Weight

1.90Kg

Size

303*78*47mm (L*W*H)

packaging

10PCS/CTN

385*335*200mm     20PCS/CTN

Notes

1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated

  load and 25℃of ambient temperature.

2..Tolerance:includes set us tolerance,line regulation and load regulation.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

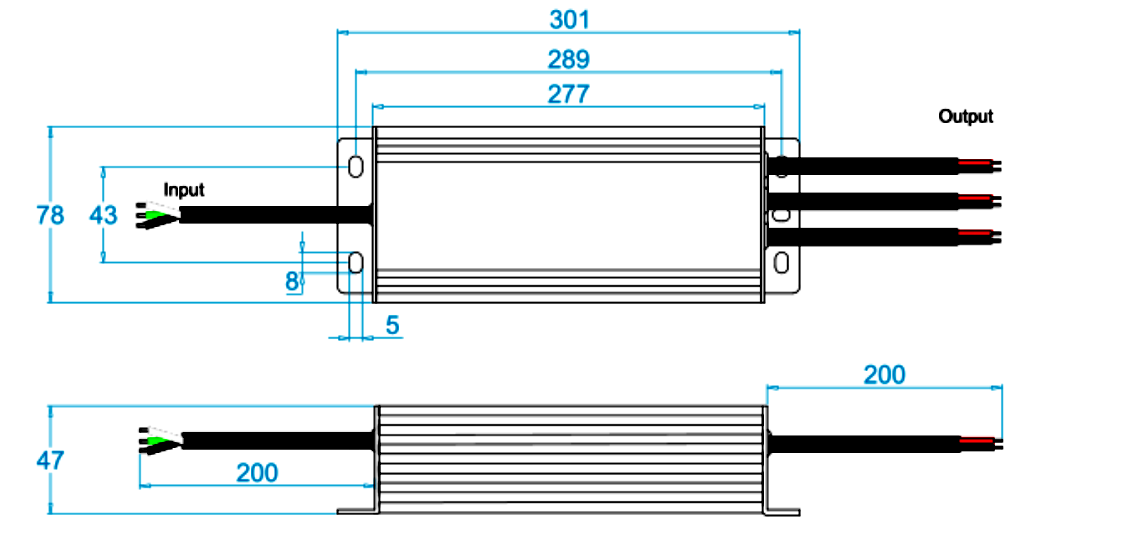

  Mechanical Specification


replacement led drivers


Ø Input wire 18AWG Black and White to be connected to AC L and N ,Green wire go ground,

Ø Output cable 2*16AWG,Red" (+) to LED Positive side (+) , "Black"(-)  to LED Negative side (-).

Note: five groups of SMT-012-300VTHW2

Ø Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.

Note: Output wire : Tolerance:P 0.5-2mm


  Dimming Operation


※Output PWM of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.

※Compatible with Leading edge or Reverse phase, trailing edge triac dimmers, Magnetic low voltage dimmers, Electric low voltage Dimmers..

※Please try to use dimmers with power at least 1.5 times as the output power of the driver.


  Compatible Lighting Type


The Spotless strip also has a high colour rendering index of CRI 90 and is very bright at 1420 lm/M, which means the strip can be used to create custom luminaires. Spotless Strip 24V IP20 5m x 10mm 2700K 18W/m CRI90 from ntegral-led can be matched with led driver 24v 100w from Swinpower.

led driver 24v 100w


  Related Products


led driver dimmable 250w


New Multi-Dim led driver dimmable 250w 300w Class 2 constant voltage 12VDC LED Driver features outstanding LED dimming performance. 300W (5 x 60W) 12VDC Class 2 Dimmable LED Driver uses Pulse-Width Modulation (PWM) dimming for smooth dimming.


Mode:SMT-012-300VTHJV2

intput voltage:100~277V AC

Efficiency > 82%

Size:301*110*45mm(L*W*H)

Weight:2.4Kg/pcs
