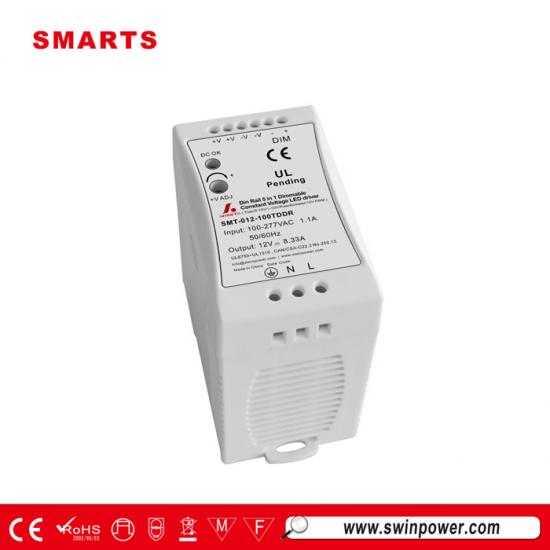

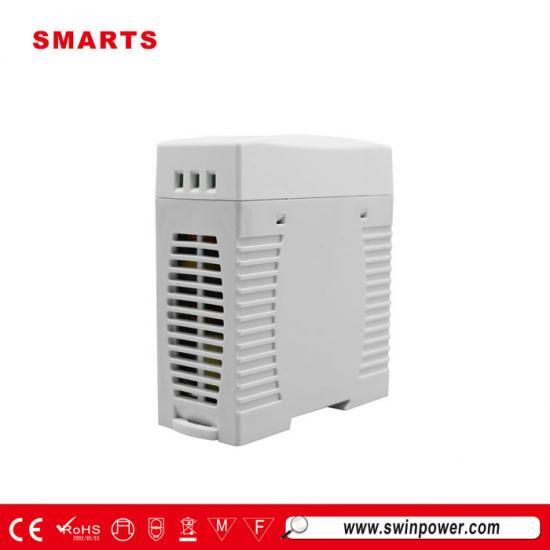

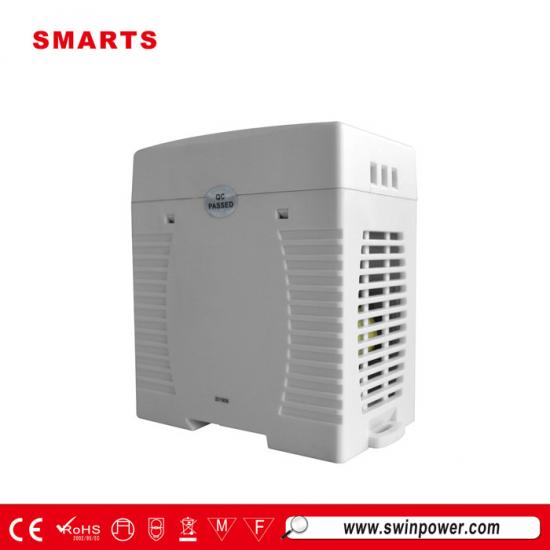

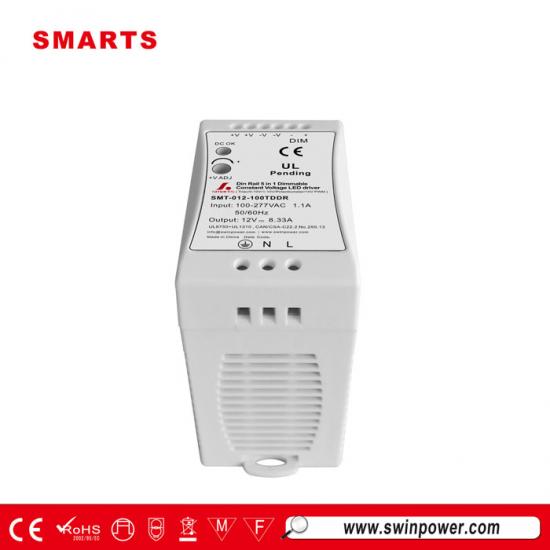

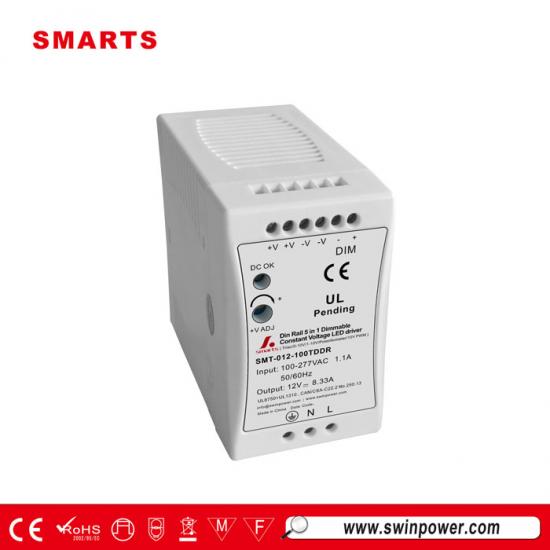

Smarts Electronics SMT-012- 100TDDR is Din Rail 5 in 1 (Triac/0-10V/1-10V/Potentiometer/10V PWM) Dimmable LED driver which could meet UL cUL. FCC Pending Class 2 .RoHs certificate with 5 years warranty.Longer warranty period than euchips led driver
Specification
|
model |
SMT-012-100TDDR |
SMT-024-096TDDR |
||
|
Output |
DC Voltage |
12VDC |
24VDC |
|
|
Voltage Accuracy |
±5% |
±5% |
||
|
Rated current |
8.33Amp |
4.0Amp |
||
|
Rated power |
100W |
96W (Class 2) |
||
|
Voltage Regulation |
±0.5% |
|||
|
Load Regulation |
±1% ±1% |
|||
|
Input |
Voltage Range |
100-277 VAC |
||
|
Frequency Range |
47~63HZ |
|||
|
Power Factor ( Typ.) |
0.98@120VAC ,0.95@277VAC |
0.98@120VAC ,0.95@277VAC |
||
|
|
THD(Typ. ) @ full load |
<20%@120VAC & 277VAC |
||
|
Full Load Efficiency(Typ.) |
83%@120VAC, 85%@277VAC |
83%@120VAC, 86%@277VAC |
||
|
AC Current(Typ.) |
1.3A |
|||
|
Inrush Current(Typ.) |
20A, 50%, 1.6ms @120VAC; 25A, 50% 1.2ms @277VAC |
|||
|
Leakage current |
<0.5mA |
|||
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition removed |
||
|
Over Loading |
≤120% Hiccup mode,recovers automatically after fault condition is removed |
|||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|||
|
Environment |
Working TEMP. |
-40~+60℃ |
||
|
Working Humidity |
20~90%RH,non-condensing |
|||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
|||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
|||
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 , CAN/CSA-C22.2 No.250.13 |
||
|
Withstand voltage |
I/P-O/P:1.88KVac |
|||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|||
|
EMC EMISSION |
FCC 47 CFR Part 15 ,Subpart B |
|||
|
Others |
Weight |
0.4Kg |
||
|
Size |
55*90*100mm(L*W*H) |
|||
|
packing |
50PCS/CTN , carton size:330*330*130mm
|
|||
|
Notes |
1. Just to confirm the drivers are Three In One Dimming Function Compatible With Leading-edge/Trailing-edge Dimmer, No Flicker? No Min load?
Answer: Our Triac dimmable led drivers are compatible with Leading-edge/Trailing-edge Dimmer,no flicker,no min load.
|
|||
 |
 |
 |
 |
