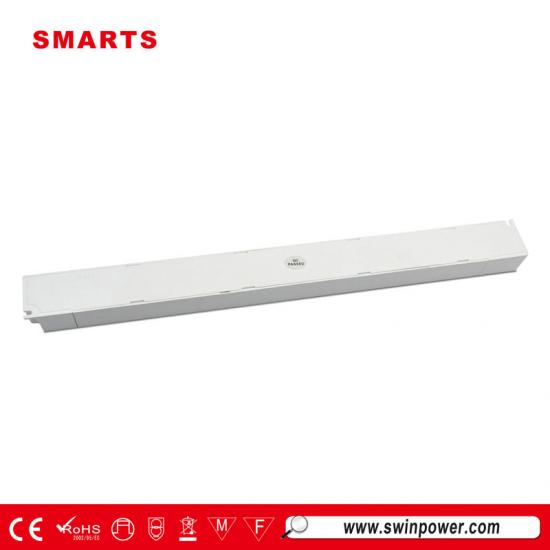

ultra slim type led power supply 36w 12v 24v for led mirror
Specification
|
model |
SMT-012-036VTDSPH |
SMT-024-036VTDSPH |
||
|
Output |
DC Voltage |
12VDC |
24VDC |
|
|
Voltage Tolerance |
±0.5 |
|||
|
Rated current |
3.0Amp |
1.5Amp |
||
|
Rated power |
36W |
36W |
||
|
Voltage Regulation |
±0.5% |
|||
|
Load Regulation |
±1% ±1% |
|||
|
Input |
Voltage Range |
200-240VAC |
||
|
Frequency Range |
47～63HZ |
|||
|
Power Factor ( Typ.） |
PF≥0.96/230VAC |
|||
|
Full Load Efficiency（Typ.） |
80% |
79% |
||
|
THD(Typ. ) @ full load |
< 20% |
|||
|
AC Current（Typ.） |
0.3A |
|||
|
Inrush Current（Typ.） |
40.8A,50%,102us |
|||
|
Leakage current |
<0.5mA |
|||
|
Protection |
Short Circuit |
Hiccup mode,recovers automatically after fault condition is removed |
||
|
Over Loading |
≤120% Hiccup mode,recovers automatically after fault condition is removed |
|||
|
Over temperature |
100℃±10℃ |
|||
|
Protection Class |
II |
|||
|
Environment
|
Working TEMP. |
-40~+60℃ (see below derating curve) |
||
|
Working Humidity |
20 - 95%RH,non-condensing |
|||
|
Storage TEM.,Humidity |
-40 - +80℃,10 - 95%RH |
|||
|
TEMP.coefficient |
±0.03%/℃(0 - 50℃) |
|||
|
Vibration |
10～500Hz,2G10min./1 cycle,period for 60min.each along X,Y,Z axes |
|||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 EN62493 |
||
|
Withstand voltage |
I/P-O/P:3.75KVAC |
|||
|
Isolation resistance |
I/P-O/P: 100MΩ/500VDC/25℃/70%RH |
|||
|
EMC EMISSION |
EN55015 EN61000-3-2 EN61000-3-3 |
|||
|
EMC IMMUNITY |
EN61000-4-2,3,4,5,6,11 EN61547 |
|||
|
Others |
Weight |
0.2Kg |
||
|
Size |
260*30*18.5mm(L*W*H) |
|||
|
packing |
330*275*130mm/ 50pcs /CTN G.W.: 11KG/CTN |
|||
|
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
|||
 |
 |
 |
 |
Mechanical Specification
Input terminals: (L) and (N) to connect to L and N of Mains AC
Output terminals: LED (+) to LED Positive side (+) , LED (-) to LED Negative side (-).
Dimming Terminal: DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) to 0/1-10V dimmer signal(-)
Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Connection diagram ani
S
p
Compatible with LED strip Type
The led driver model 24 36w is extremely suitable for High Output RGB LED Strip-84LEDs RGB 24V 17.1W 714Lm.
Related Products
|
The 24vdc 300w led driver triac dimmable is 0~100% dimming range for most of the Lutron, Liviton brand triac dimmer. The junction box paired is suitabke for North American market.
Mode：SMT-024-300VTHV2 intput voltage：100~277V AC Efficiency > 88% Size：278*110*45mm （L*W*H） Weight：1.90 Kg/pcs |
|
|
