UL listed 24V 200W led driver for house room lighting
Our new SMT-024-200VTH is led driver 200w suitable for powering a wide range of Undercabinet Lighting,Furniture Illumination and led strip Bedroom LED Lighting products.the high efficiency is up to 90%,
Smarts offer 7 years warranty for this driver.
Specification
model
SMT-012-200VWN
SMT-024-200VWN
Output
DC Voltage
12V
24V
Rated Current
16.66A
8.33A
Rated Power
200W
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±2%
±1%
±1%
Input
Voltage Range
110-277VAC
Frequency Range
47-63Hz
Power Factor(Typ.)
@ full load
0.99@120VAC; 0.98@230VAC;0.97@277VAC
0.99@120VAC; 0.97@230VAC; 0.96@277VAC
THD(Typ.)@ full load
<10%@120VAC <20%@230VAC <20%@277VAC
Efficiency(Typ.)@ full load
85%@120VAC; 88%@230VAC ;87%@2 77VAC
85%@120VAC; 89%@230VAC; 88%@277VAC
AC Current(Max.)
2.3A@110VAC
2.3A@110VAC
Inrush Current (Typ.)
15A, 50%, 1.4ms@120VAC; 55A,50%220us@230VAC; 30A,50%1.4ms@277VAC
Leakage current
<0.50mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading
≤120% constant current limiting, auto-recovery
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40~+60℃ (see below derating curve)
Working Humidity
20~90% RH, non-condensing
Storage TEMP. Humidity
-40~+80℃,10~95%RH
TEMP .coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750
Withstand voltage
I/P-O/P:1.88KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Net Weight
1.5Kg
Size
256*78*47mm (L*W*H)
packing
329*279*176mm , 10PCS/ctn
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
 |
 |
 |
 |
Mechanical Specification
Connection Diagram
Compatible Lighting Type
SMARTS's led drivers for lighting is one with the CE UL Listed led driver which is suitable for dry damp and wet location.They have been tested with Lumilum company's IP67 Waterproof LED Strip Ligh.
Related Products
|
|

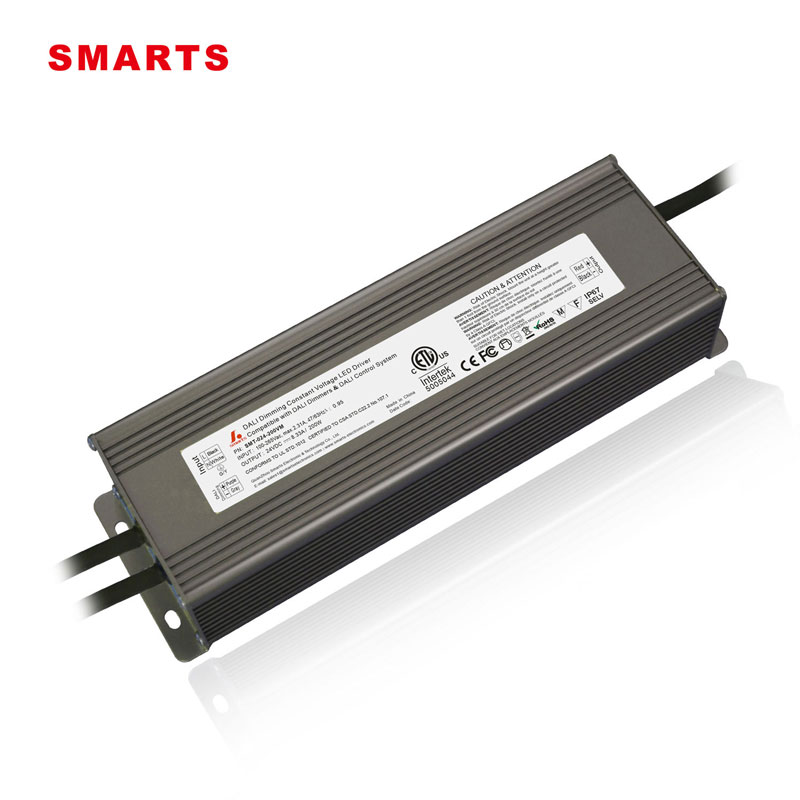

SMT-024-200VM uses DALI dimming technology for smooth dimming. Led driver for strip light is compatible with wide range of light fixtures.
