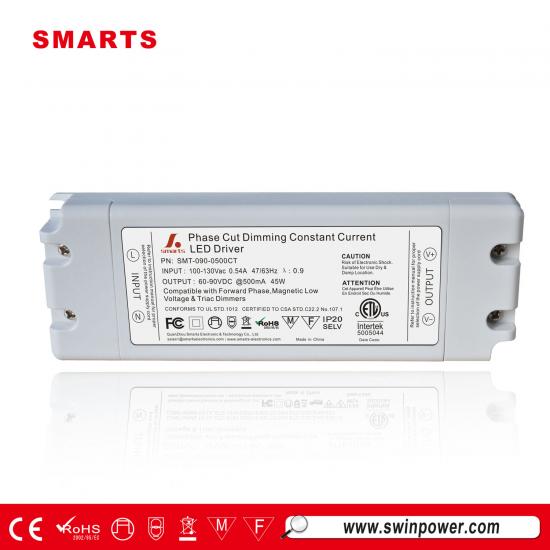

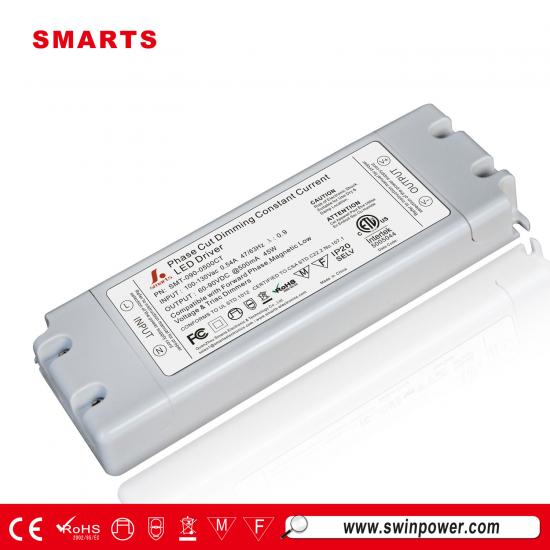

triac dimmable constant current led driver 45w 900ma

CE ROHS ETL/cETL approval, integrity protection,over loading, over voltage ,over current dimmable led driver constant current.


  • Brand:

    SMARTS
  • Item No.:

    SMT-090-0500CT
  • Input Voltage:

    100-130V/ 170-265V
  • Output Voltage:

    60-90v
  • Output Current:

    500ma
  • Working Mode:

    CC
  • Dimming mode:

    triac dimmable
  • Size:

    180*60*34mm
  • Certification:

    CE, ETL, FCC, ROHS
Products description

 triac dimmable constant current led driver 45w 900ma


Meet to safety standard and EMC standard, 100% full load burn-in test 500mA TRIAC dimmable led driver.Can replace meanwell's Triac dimming 45W LED power supply.


  Specifications

  1. I/P:90-135V/170-265, 47~63Hz
  2. Ambient temp.:-20 degree~40 degree full load
  3. Efficiency > 88%
  4. PFC> 0.9
  5. size: 140*45*28mm
  6. RippleI & Noise (max.) : 150mVp-p
  7. Voltage Tolerance : ±5%
  8. Line Regulation : ±1%
  9. Load Regulation : ±2%
  10. Setup, Rise Time : 500ms, 120ms / 230VAC
  11. 3 years warranty




  Product parameters


Model

SMT-090-0500CT

SMT-048-0500CT

SMT-036-0700CT

SMT-024-1050CT

Output

DC Current

500mA

500mA

700mA

1050mA



Current Accuracy

±5%



Voltage Range

60-90V

30-48V

20-40V

10-24V



Rated power

45W

30W

25W

25W

Input

Voltage Range

170250VAC/(90-130VAC For North America Markets )



Frequency Range

4763HZ



Power Factor Typ.

PF≧0.93/110V ; PF≧0.95/220V ; PF≧0.94/250V



Full Load EfficiencyTyp.

85%

86%

85%

85%



AC CurrentTyp.

0.14A/110VAC  0.12 A/220VAC  0.01A/250VAC



Leakage current

<0.27mA/110VAC; 0.25mA/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed.



Over voltage

≦270VAC

Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz2G 10min./1 cycleperiod for 60min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN-60950-1, EN-61347-1-2



Withstand voltage

I/P-O/P:3.75KVAC



Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH



EMC EMISSION

Compliance toEN55015,EN61000-3-2 (≧50%load)



EMC IMMUNITY

Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level surge4KV

Others

Weight

0.34Kg/pcs



Size

180*60*34mL*W*H



packing

324*298*176mm

Notes

1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and

25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

 pair-wire terminated with a 0.1uf &47uf parallel capacitor.

1. 3.Tolerance:includes set us tolerance,line regulation and load regulation .

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



When to use constant current led driver?


Usually, the manufacturer of the LED light will indicate which type of power supply you need. If it's rated for milliamps or amps, you are in the right place. If it's rated for a specific voltage, you may need a 12 Volt or 24 Volt constant voltage driver.
