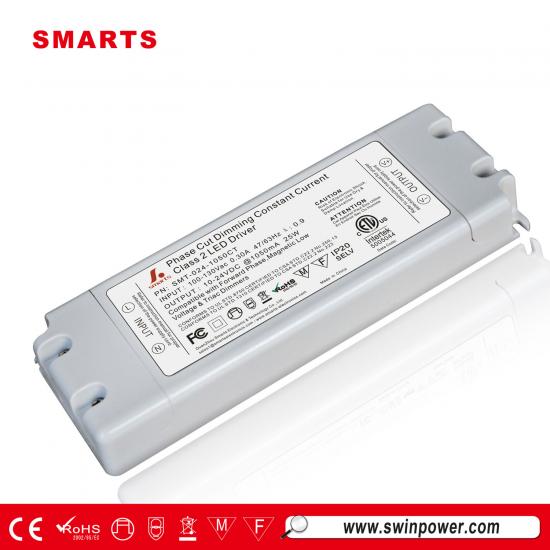

high pfc led driver constant current triac 1050ma dimmable led driver
High efficiency,save energy ,protected environment, assure LED stability long lift and light efficiency by constant voltage dimmable led driver constant current.Often used in LED modules with ledwatcher.
Specifications
- I/P:90-135V/170-265, 47~63Hz
- Ambient temp.:-20 degree~40 degree full load
- Efficiency > 88%
- PFC> 0.9
- size: 140*45*28mm
- RippleI & Noise (max.) : 150mVp-p
- Voltage Tolerance : ±5%
- Line Regulation : ±1%
- Load Regulation : ±2%
- Setup, Rise Time : 500ms, 120ms / 230VAC
- 3 years warranty
Product parameters
Model
SMT-090-0350CT
SMT-048-0500CT
SMT-036-0700CT
SMT-024-1050CT
Output
DC Current
350mA
500mA
700mA
1050mA
Current Accuracy
±5%
Voltage Range
50-90V
30-48V
20-40V
10-24V
Rated power
30W
30W
25W
25W
Input
Voltage Range
170～250VAC/(90-130VAC For North America Markets )
Frequency Range
47～63HZ
Power Factor （Typ.）
PF≧0.93/110V ; PF≧0.95/220V ; PF≧0.94/250V
Full Load Efficiency（Typ.）
85%
86%
85%
85%
AC Current（Typ.）
0.14A/110VAC 0.12 A/220VAC 0.01A/250VAC
Leakage current
<0.27mA/110VAC; ﹤0.25mA/220VAC
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed.
Over voltage
≦270VAC
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes
Safety&EMC
Safety standards
EN-60950-1, EN-61347-1-2
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY
Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry
level （surge4KV）
Others
Weight
0.34Kg/pcs
Size
180*60*34mm （L*W*H）
packing
324*298*176mm
Notes
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
1. 3.Tolerance:includes set us tolerance,line regulation and load regulation .
 |
 |
 |
 |
What is the constant current led driver?
Constant current LED drivers are designed for a designated range of output voltages and a fixed output current (mA). LEDs that are rated to operate on a constant current driver require a designated supply of current usually specified in milliamps (mA) or amps (A). These drivers vary the voltage along an electronic circuit which allows current to remain constant throughout the LED system.
