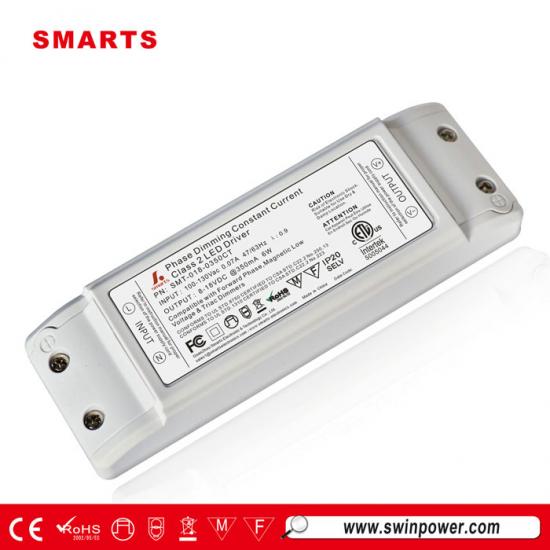

ETL CE ROHS triac dimming 350mA 6W constant current led driver
Specification:

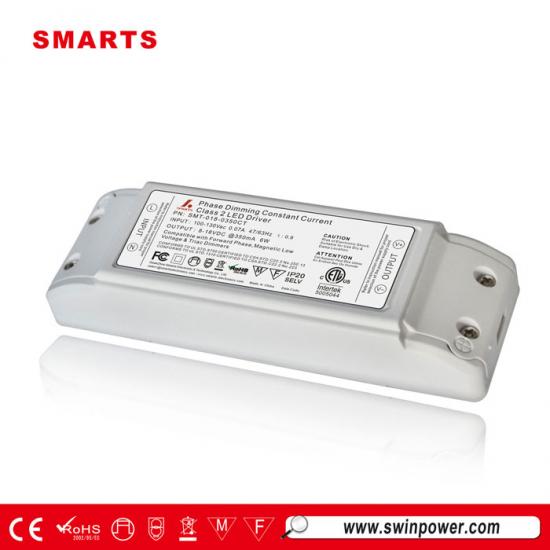

This triac 6 watt led driver are designed for reliable, high-efficiency performance. The output current is 350mA, can be matched with most floodlight, spotlight,downlight. Zaneen lighing 350mA downlight D86508 can be compatible.
|
Model |
SMT-018-0350CT |
SMT-032-0320CT |
SMT-030-0350CT |
SMT-015-0700CT |
|
|
Output |
DC Current |
350mA |
320mA |
350mA |
700mA |
|
Current Accuracy |
±5% |
||||
|
Voltage Range |
8~18V |
15~32V |
15~30V |
7-15V |
|
|
Rated power |
6W |
10W |
10W |
10W |
|
|
Input |
Voltage Range |
90-135VAC / 170～265VAC |
|||
|
Frequency Range |
47～63HZ |
||||
|
Power Factor（Typ.） |
PF≧0.91/110V;PF≧0.93/220V;PF≧0.93/250V |
||||
|
Full Load Efficiency（Typ.） |
>84% |
>84% |
>85% |
>85% |
|
|
AC Current（Typ.） |
0.14A/110VAC 0.12 A/220VAC 0.01A/250VAC |
||||
|
Leakage current |
<0.27mA/110VAC;﹤0.25mA/220VAC |
||||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|||
|
Over voltage |
≦150VAC@110V /≦270VAC@220V |
||||
|
Environment |
Working TEMP. |
-40～+60℃ |
|||
|
Working Humidity |
20～90%RH,non-condensing |
||||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for60min. each along X,Y,Z axes |
||||
|
Safety&EMC |
Safety standards |
EN-60950-1, EN-61347-1-2 |
|||
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≧50%load) |
||||
|
EMC IMMUNITY |
Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level（surge4KV） |
||||
|
Others |
Weight |
0.16Kg/pcs |
|||
|
Size |
140*45*28mm mmm（L*W*H） |
||||
|
packing |
324*298*176mm |
||||
|
Notes |
1. All parameters NOT specially mentioned are measured at110V/230VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||||
 |
 |
 |
 |

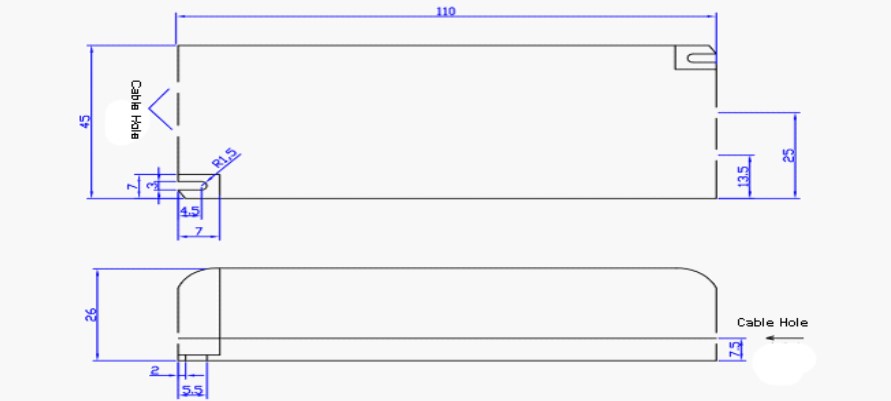

■Mechanical Specification:
※Input with connecting terminal
※Output with connecting terminal
※Note: Any other requests we can customized.
■Dimming Operation
※Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
※Compatible with Leading edge or tailing edge triac dimmers.
※please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero

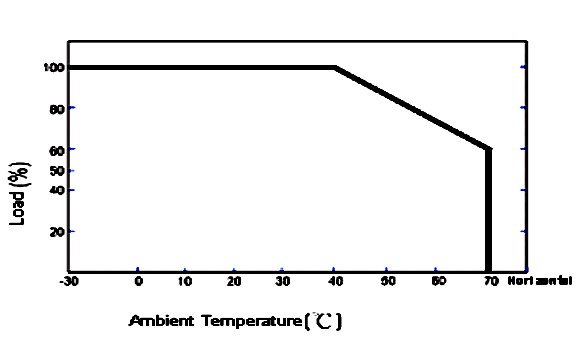

■Derating Curve
※Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.

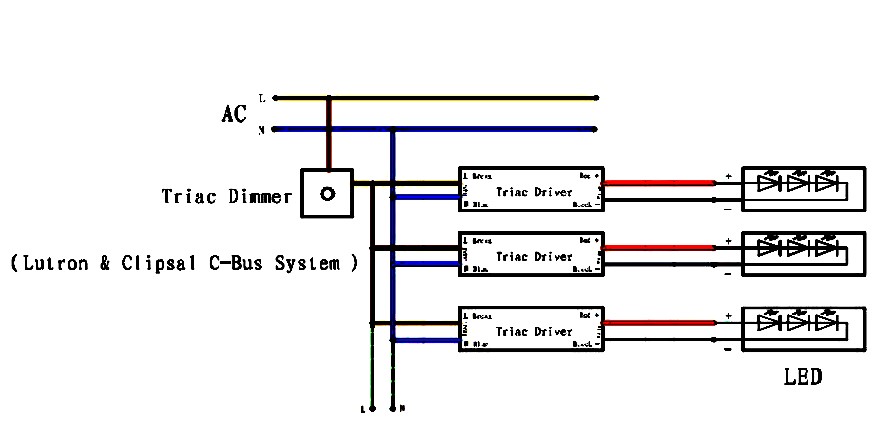

■ Connecting Diagram

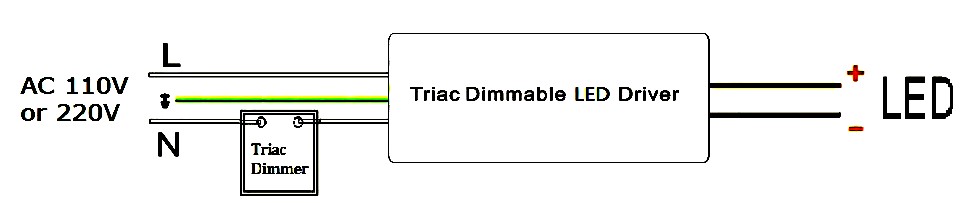

■ Simple Connection Diagram
Compatible Dimmer Type

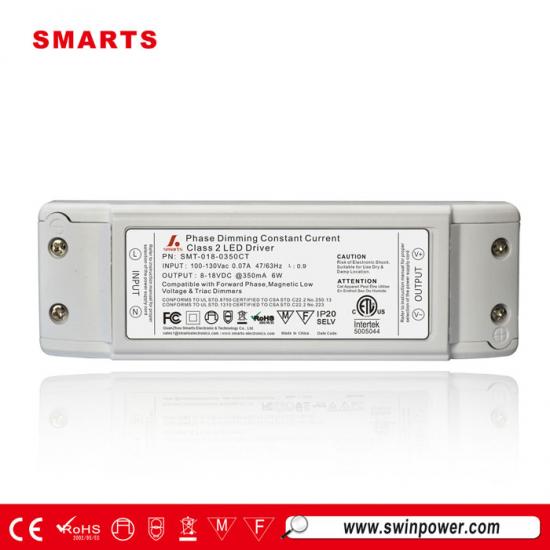

This led dimmable driver constant current is a flicker free design.SMT-018-0350CT comes in a fully isolated plastic case that is IP20 rated. Protection of short circuit/over voltage/over heat are all provided. It can be matched with Lutron dimmer DVCL-153PR-WH.
|
|
Related Products
|
|

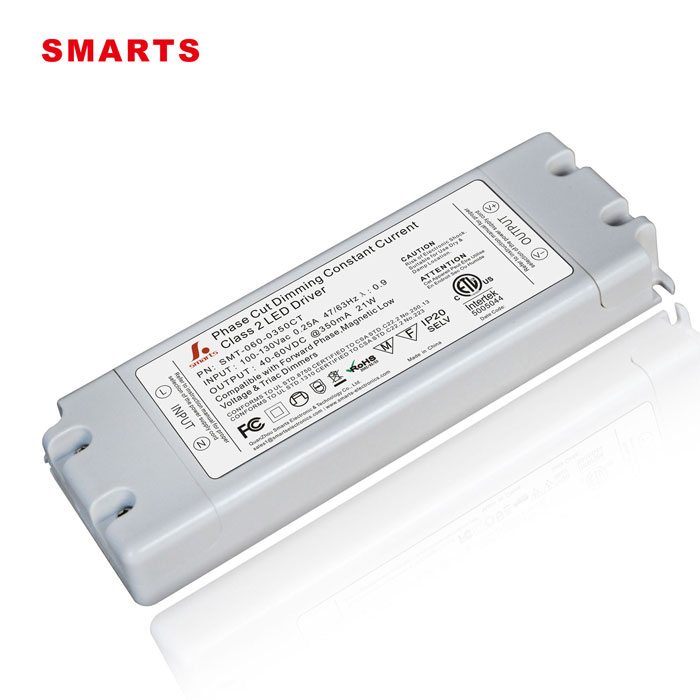

This led dimmable triac has the same output current 350mA. The difference between the above one is that: The output voltage is 40-60V and the output power is 21W.
Model：SMT-060-0350CT intput voltage：100-130/170-265VAC Output Current:350mA Size：180*60*34mm （L*W*H） Certificaiton:ETL/cETL,FCC,CE,ROHS |
