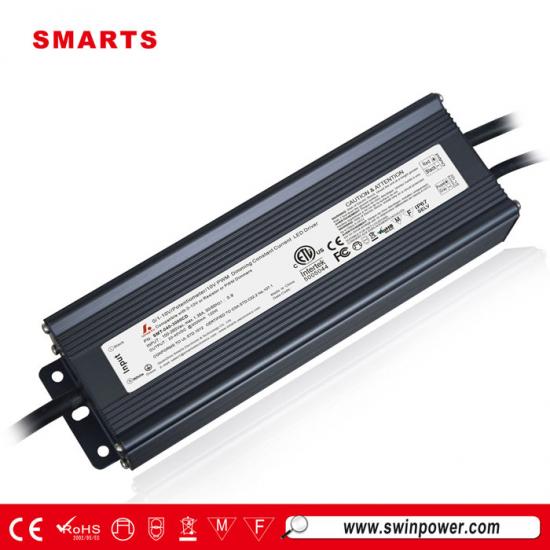

5 years warranty 3000mA 120w dimmable led driver for 0-10v dimming control

120w dimmable led driver is 1-10v/10v PWM/Resistor Dimming mode,it is ETL CE ROHS FCC approval,so it is suitable for American & European market.Can be used to match fulham's LED modules 100W.
  • Brand:

    SMARTS
  • Item No.:

    SMT-040-3000CD
  • Input Voltage:

    100-265Vac/ 170-305Vac
  • Output Voltage:

    20-40vDC
  • Output Current:

    3000mA
  • Working Mode:

    constant current
  • Dimming mode:

    0-10 dimming
  • Size:

    230*68*45mm
  • Certification:

    ETL CE ROHS FCC
Products description

5 years warranty 3000mA 120w dimmable led driver for 0-10v dimming control


3000mA led driver is a constant current design for 0-10v dimmable led driver.we give 5 years warranty.Longer warranty life than meanwell's 0-10V dimming power supply.it is has high efficiency and low operation temperature.



  Features


  1. VoltageRange: 100-265VAC
  2. Built-in PFC function, PF>0.9
  3. Efficiency>87%
  4. Protections:short circuit/over current/over voltage/over temperature
  5. Cooling by free air convection
  6. IP67 design for indoor or outdoor installation .
  7. Dimming function:0-10V/10V PWM or potentiometer dimming.
  8. Suitable for LED lighting and moving sign applications
  9. Compliance to worldwide safety regulations for lighting
  10. Suitable for dry/damp/wet locations
  11. Dimming range: 0-100%
  12. 5 years warranty
  13. ETL/cETL, FCC, ROHS, CE approval


  Description


Model

SMT-100-1050CD

SMT-071-1400CD

SMT-060-1750CD

SMT-050-2000CD

SMT-042-2400CD

SMT-40-3000CD

Output

DC Current

1050mA

1400mA

1750mA

2000mA

2400mA

3000mA



Current Accuracy

±5%



Voltage Range

55-100V

45-71V

40-60V

30-50V

25-42V

20-40V



Rated power

105W

100W

100W

100W

100W

120W

Input

Voltage Range

100265VAC



Frequency Range

4763HZ



PF

PF≧0.96/110V/PF≧0.98/220V



Full Load EfficiencyTyp))

>87%(110,220V)

>87%(110,220V)

>87%(110,220V)

>87%(110,220V)

>87%(110,220V)

>88%(110,220V)



AC Current (Typ.

1.08A/220VAC

0.504A/220VAC

1.10A/110VAC

0.522A/220VAC

1.12A/110VAC

0.537A/220VAC

1.122A/110Vac 0.545A/220Vac

1.20A/110VAC

0.560A/220VacC

1.24A/110VAC

0.610A/220Vac



Leakage current

0.5mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed



Over Loading

≤120%



Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40+60℃



Working Humidity

2095%RH non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13



Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC



Isolation resistance

I/P-O/P I/P-FG O/P-FG100M Ohms/500VDC/25℃/70%RH



EMC EMISSION

Compliance to EN55015,EN61000-3-2 (60%load)



EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry Level Criteria A

Others

Weight

1.2Kg/pcs



Size

230*70*60mmL*W*H



packing

330*280*176mm  10PCS /CTN

Notes

1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and 25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

  Application


All of our drivers are got ETL CE SAA ROHS listed .OEM Welcome.
Our led drivers are widely used for:
  • 1.Indoor LED illuminating lights
  • 2.LED Neon, LED urban Decoration
  • 3.LED Lighting Advertising,LED Display
  • 4.Safety Protection Apparatus
  • 5.Telecommunications, Networks
  • 6.Vehicle Lights, Controller Panels
