30w 500ma 40-60vdc triac dimmable constant current led driver

30w 500ma 40-60vdc triac dimmable constant current led  driver; led driver lighting; led power supply constant current
  • Brand:

    SMARTS
  • Item No.:

    SMT-060-0500CT
Products description

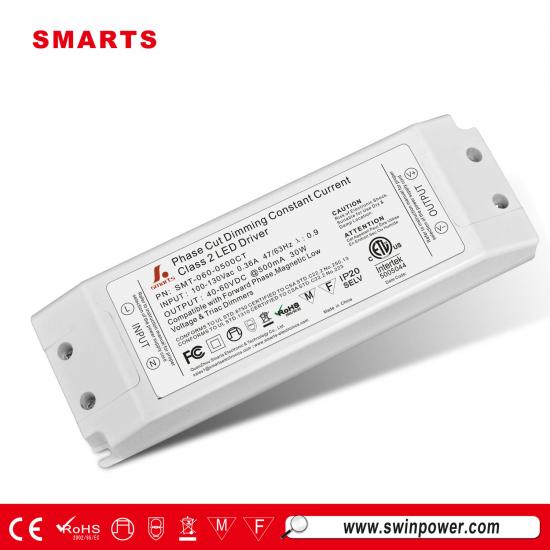

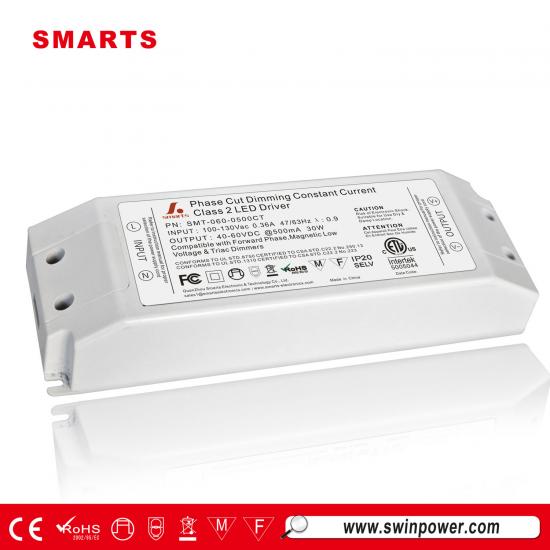

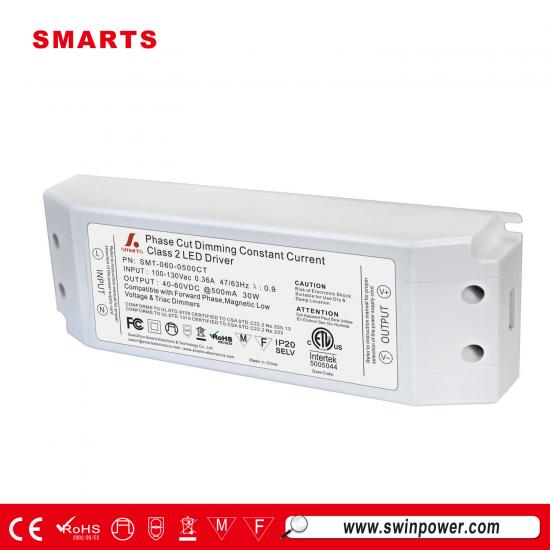

30w 500ma 40-60vdc triac dimmable constant current led  driver

Smarts SMT-060-0500CT 40-60vdc 500ma 30w offered range of dimmable constant current led driver Capacitor can be availed by your project in different specifications to meet the exact requirements. SMARTS constant current power supply is highly compatible and can match multiple brands of lamps such as superior lighting LED downlight and signify LED modules.


  Product Description

Model

Input voltage(vAC)

Working Frequency (Hz)

Output voltage

(vDC)

Output Current (A)

Output power (W)

Working Temp.

Protection grade

SMT-090-0350CT

90-135V/

170-265V

47~63Hz

70-90vDC

350mA

31W

-25~50°C

IP20

SMT-060-0500CT

90-135V/

170-265V

47~63Hz

40-60vDC

500mA

30W

-25~50°C

IP20

SMT-048-0500CT

90-135V/

170-265V

47~63Hz

30-48vDC

500mA

24W

-25~50°C

IP20

SMT-070-0500CT

90-135V/

170-265V

47~63Hz

50-70vDC

500mA

35W

-25~50°C

IP20

SMT-030-0700CT

90-135V/

170-265V

47~63Hz

15-30vDC

700mA

21W

-25~50°C

IP20

 SMT-045-0700CT

90-135V/

170-265V

47~63Hz

27-45vDC

700mA

 31W

-25~50°C

IP20

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Features

  1. Case material: plastic case
  2. Cooling by free air convection
  3. 100% full load burn-in test
  4. High reliability
  5. Suitable for LED lighting and moving sign applications

  Environment parameter

  1. Working temperature:-40 -80°C
  2. Store temperature:-40 -85°C
  3. Working humidity:10-90%
  4. Lifespan:(MTBF)50,000 hours
  5. Case machine specifications
  6. Case: plastic case

  Product Features:

  1. Universal AC input (90~135VAC, 170~ 265VAC)
  2. Protections: Short circuit/Overload/Over voltage/Over temp.
  3. Built-in active PFC function
  4. PF>0.90
  5. designing standard: Ul1310 Class 2 power unit
  6. Cooling by nature
  7. Suitable for dry location
  8. Suitable for LED lighting and moving sign applications
  9. Follow the global lighting safety regulations

  Safety

  1. Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
  2. Withstand Voltage : I/P-O/P: 3000KVAC
  3. Isolation Resistance : I/P-O/P:100M Ohms/500VDC


  Question

In the diagram spec sheet it show the dimmer on the N (neutral)? Normally Triac the dimmer is on the L Line?


  Answer

Dimmer can be connected on the N (neutral) or on the L (Line). Depending on you.


  Our Services


What Service we can supply??

  • 1.All inquiries will be replied within 24 hours
  • 2.Professional manufacturer,welcom to visit our website
  • 3.OEM/ODM avaliable:
  •      A.Print logo on our product;
  •      B. Customized specification;
  • 4.After Sales-Service:
  •      A. All products will have 100% burn-in test and strictly quality test before shipping;
  •      B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
  • 5.High efficiency,long life span,reasonable&competetative price,fast lead time;
  • 6.We have our engineer team, if you have any question about your LED applications, let us know freely.
Leave a message
To know more our LED drivers/power supplies/LED transformers, pl. send email to us, we will reaply you soon.
