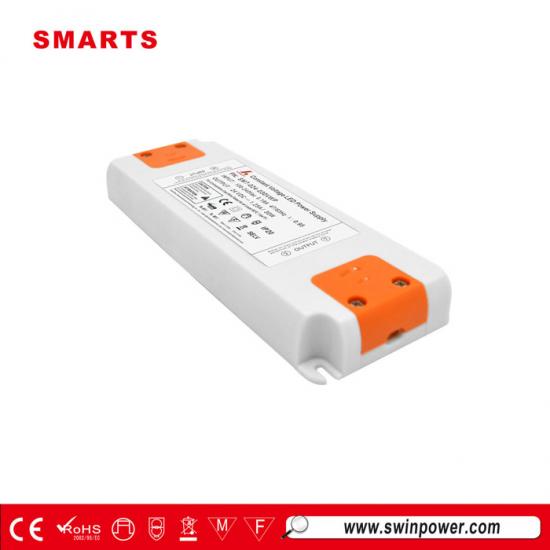

24v 30w high power led voltage driver
|
This SMT-024-030VWP high power led voltage is a CE (LVD + EMC) listed suitable for dry locations.It features overload and over heat protection, as well as short circuit protection with auto-restart.So, SMARTS 24V 30W led driver has a longer service life than 30W LED power supply of meanwell.
|
Label for 30w led driver:
Specification
| MODEL | SMT-012-030VWP | SMT-024-030VWP | |
| OUTPUT | DC VOLTAGE | 12V | 24V |
| RATED CURRENT | 1.5Amp | 1.25Amp | |
| VOLTAGE RANGE | |||
| RATED POWER | 30Watt | 30Watt | |
| RIPPLE&NOISE(max) | 300mV | 300mV | |
| VOLTAGE TOLERANCE | ±5% | ±5% | |
| LINE REGULATION | ±1% | ±1% | |
| LOAD REGULATION | ±2% | ±2% | |
| INPUT | VOLTAGE RANGE | 100-265VAC | 100-265VAC |
| FREQUENCY RANGE | 47-63Hz | 47-63Hz | |
| POWER FACTOR(Typ.) | |||
| EFFICIENCY(Typ.) | >83% | >84% | |
| AC CURRENT(Typ.) | 0.31A/110VAC, 0.17A/220VAC | ||
| PROTECTION | SHORT CIRCUIT | Protection type:recovers automatically after condition is removed | |
| OVER CURRENT | overload protected@145-160% above peak rating | ||
| OVER VOLTAGE | Protection type:Shut down o/p voltage,re-power on to removed | ||
| ENVIRONMENT | WORKING TEMP. | -10~+50℃ (Refer to output load derating curve) | |
| WORKING HUMIDITY | 20~99% RH non-condensing | ||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13; UL /CE /ROHS approval | |
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| EMC Test Standards | EN55015;EN61000-3-2;EN61000-3-3; | ||
| EN61547;EN61000-4-2,3,4,5,6,8,11; | |||
 |
 |
 |
 |
Question:
1. Does the 12v 96 watt sample we received have a limited powersource(LPS) pass? If so can the LPS be printed on the power supply label?
Answer:
Really sorry that 12v 96w models you received do not have LPS.. But after viewing the rules of LPS test, I found that LPS test is mainly for communication product.. most of the material of communication product is plastic,
and the power supply we provide is Aluminum case, hence I think it is not so important to consider the led power supply has LPS or not..
