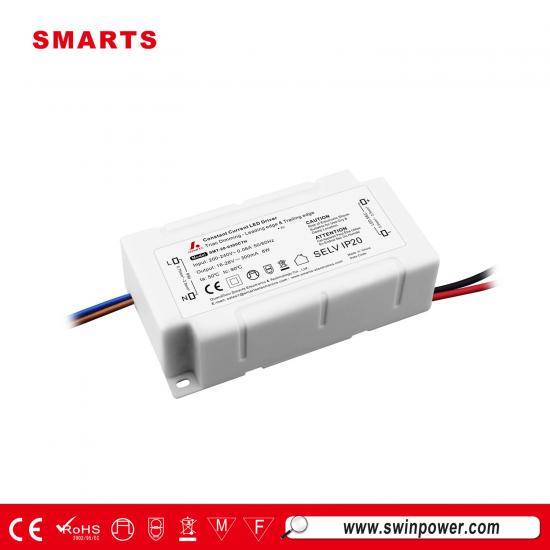

16-28vDC 300mA 8w Triac Dimmable constant current LED Driver for led light

100% full load burn-in test, current Limit : ±5% rated output current, 300ma 400ma output current. triac dimming led driver .meet to safety standard and EMC. this led driver are workable for led lamp, ceiling lights etc....
  • Brand:

    SMARTS
  • Item No.:

    SMT-028-0300CTH
  • Input Voltage:

    180-265vAC
  • Output Voltage:

    16-28v
  • Output Current:

    300ma
  • Working Mode:

    constant current
  • Dimming mode:

    triac dimming
  • Size:

    85*45*26
  • Certification:

    CE ROHS
Products description

16-28vDC 300mA 8w Triac Dimmable constant current LED Driver for led light


CE ROHS approval triac dimmable led driver are our newly product,we give 3 years warranty.all are short circuit/overload/over voltage/over temp.


  Specification


Model

SMT-035-0350CTH

SMT-045-0250CTH

SMT-025-0500CTH

SMT-028-0300CTH

Output

DC Current

350mA

250mA

500mA

300mA



Current Accuracy

±5%



Voltage Range

23~35V

33~45V

13~25V

16-28V



Rated power

12W

12W

12W

8W

Input

Voltage Range

  170~265VAC



Frequency Range

47~63HZ



Power Factor (Typ.)

PF>0.91/110V ; PF>0.93/220V ; PF>0.93/250V



Full Load Efficiency(Typ.)

>84%

>84%

>85%

>85%



AC Current(Typ.)

0.14A/110VAC  0.12 A/220VAC  0.01A/250VAC



Leakage current

<0.27mA/110VAC; <0.25mA/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.



Over voltage

<150VAC@110V / <270VAC@220V

Environment

Working TEMP.

-40~+60℃



Working Humidity

20~90%RH,non-condensing



Storage TEM.,Humidity

-40~+80℃,10~95%RH



TEMP.coefficient

±0.03%/℃(0~50℃)



Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

  What is Dimming Operation for triac dimmable constant current led driver ?



Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.

Compatible with Leading edge or tailing edge triac dimmers.

please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to

achieve the output current to zero


  Application
300mA LED power supply

Our products are widely used in various industries, such as:

  1. INdoor LED illuminating lights,
  2. LED Neon,
  3. LED City Decoration,
  4. LED Lighting Advertising,
  5. LED Display,
  6. Safety Protection Apparatus,
  7. Telecommunications,
  8. Networks,
  9. Vehicle Lights,
  10. Controller Panels, etc.
