12V 36w ac to dc transformer for led strip spotlight
Smarts SMT-012-036VWSP is 12 volt LED transformer which is 12v 36w output with slim size about 261*30*19mm, it's IP20 plastic case could use for indoor project.36W led drivers are often used to install cabinet lights such as LOWE'S Under Cabinet Lighting
|
Feture |
|
|
·Output constant voltage type ·Input voltage range 100-277VAC ·UL/cUL listed, Class 2, Class P approval ·Built-in PFC function / Efficiency > 84% / PF> 0.95 ·Protections:short circuit/over voltage/over heat ·IP20 design for indoor dry environment installations ·Cooling by free air convection ·PWM output, does not change the color index ·Full protection aluminum housing, for dry, damp, wet location ·Suitable for LED lighting and moving sign applications ·Compliance to worldwide safety regulations for lighting ·7 years warranty |
|
Specification
model
SMT-012-036VWSP
SMT-024-036VWSP
Output
DC Voltage
12VDC
24VDC
Voltage Accuracy
±5%
±5%
Rated current
3.0Amp
1.5Amp
Rated power
36W
36W
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±1%
±1%
Input
Voltage Range
100-277 VAC
Frequency Range
47~63HZ
Power Factor ( Typ.)
0.99@120VAC 0.97@230VAC 0.95@277VAC
THD(Typ.)@ full load
<15%@120VAC <20%@230VAC <20%@277VAC
Full Load Efficiency(Typ.)
82%@120VAC ; 83%@230VAC; 84%@ 277VAC
AC Current(Typ.)
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;
12A,50%480us@277VAC
12A,50%480us@277VAC
Leakage current
<0.50mA
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition
is removed.
Over Loading
≤120% shut down o/p voltage, re-power on to recover
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40~+60℃
Working Humidity
20~90%RH,non-condensing
Storage TEM.,Humidity
-40~+80℃,10~95%RH
TEMP.coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz,2G 10min./1 cycle,period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance to EN55015,EN61000-3-2 (≥60%load)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
Others
Weight
0.20Kg
Size
260*32*18mm (L*W*H)
packing
50PCS/CTN
Notes
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

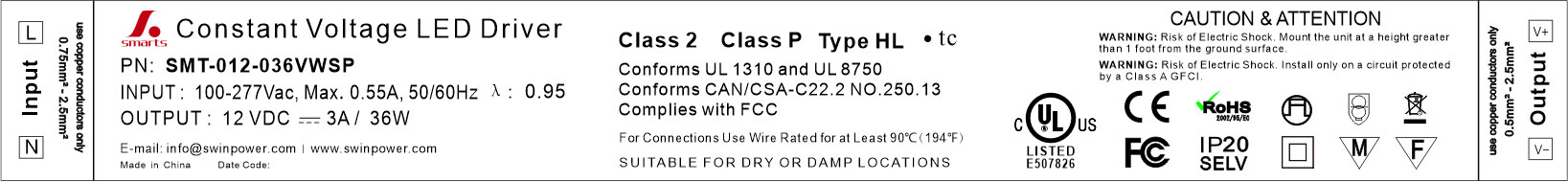

Label
Our led drivers are widely used for:
1.Indoor LED illuminating lights
2.LED Neon, LED urban Decoration
3.LED Lighting Advertising,LED Display
4.Safety Protection Apparatus
5.Telecommunications, Networks
6.Vehicle Lights, Controller Panels
Mechanical Specification
Derating Curve
