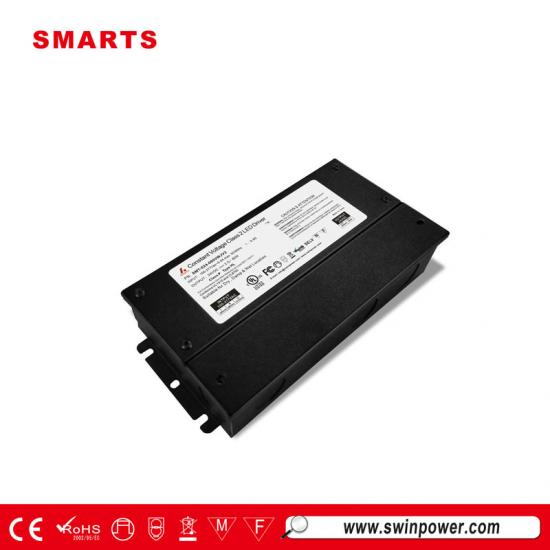

120v to 24v led driver 60 watt transformateur led power supply
60w led driver are class 2 compliant dc power supply, the limited output voltage and output power delivery capabilities are recognized to be the lower risk to cause the fire and electrical shocks,so SMARTS 60W constant voltage led power is more secure than SloanLED 60W LED power supply.
Specification
model
SMT-012-060VWJ (1.0 version)
SMT-012-060VWJV2 (2.0 version)
SMT-024-060VWJ (1.0 version)
SMT-024-060VWJV2 (2.0 version)
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
±0.5V
Voltage Regulation
±0.5%
Rated current
5.00A
2.50A
Load Regulation
±1%
Rated power
60W
60W
Input
Voltage Range
100-277V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
0.98@120VAC 0.94@277VAC
0.98@120VAC 0.95@277VAC
Full Load Efficiency（Typ.）
>83%@110V, >85%@277VAC
>85%@110V, >86%@277VAC
AC Current（Typ.）
0.93A/120VAC
Inrush Current （Typ.）
14A,50% ,780us @120v ;50A,50% 176us@230V ;15A 50% 660us@277V
Leakage current
<0.50mA
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading
≤120% Hiccup mode,recovers automatically after fault condition is removed
Over voltage
≦140VAC(90~135V) , ≦285VAC(170~277V)
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P:2.2KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
EMC IMMUNITY
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Alight industry level （surge4KV）
Others
Weight
About 1.1Kg
Size
1.0 version: 188*92*40mm /2.0 version: 188*94.5*40mm（L*W*H）
packing
10PCS/CTN
（L*W*H）
Notes
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
 |
 |
 |
 |
Mechanical Specification
Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
Output:18AWG Red to LED Positive side (+) , Black to LED Negative side (-).
Derating Curve
Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.
Compatible LED tape lights strip
A low-profile alternative to traditional tape lights, the 24 VDC exterior tape lights have such a small form factor that they can be used in almost confined space inside your cabins or engine room or outside on the deck. they are capable well with our led strip light power.
 |
|
Related Products
|
|

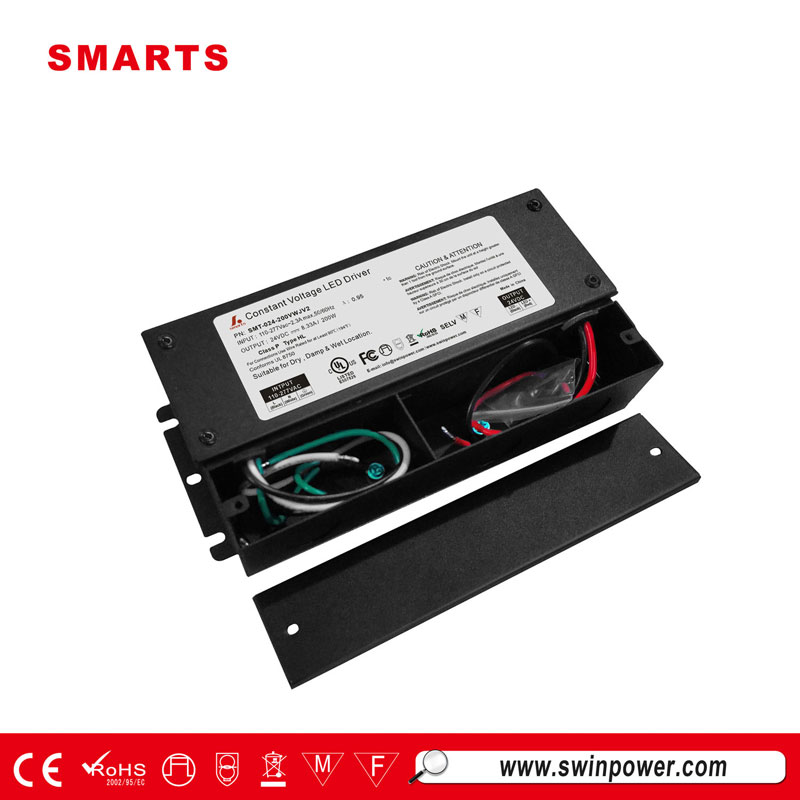

120v to 24v led driver with premium brandc components.100~277V AC for any residential or commercial application.
