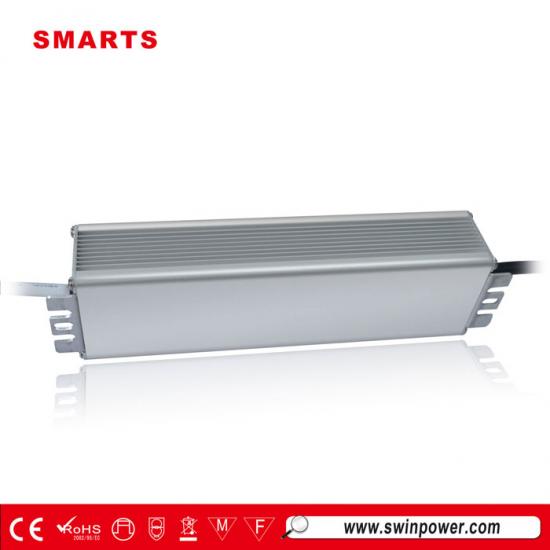

110VAC waterproof power supply 12V 5A 60W LED driver with ETL approval

waterproof 12v 60w constant voltage LED driver takes about 2 years warranty,and it is have short circuit/overload/over temperature protection.Can protect superior lighting canopy lamp, make the lamp life longer.Through 100% full load burn-in test.
  • Brand:

    SMARTS
  • Item No.:

    SMT-012-060VW
  • Input Voltage:

    100-265Vac
  • Output Voltage:

    12
  • Output Current:

    5A
  • Working Mode:

    constant voltage
  • Dimming mode:

    non-dimmable
  • Size:

    190*48*34mm
  • Certification:

    ETL CE ROHS
Products description

110VAC waterproof power supply 12V 5A 60W LED driver with ETL approval


110VAC waterproof power supply constant voltage led driver are our strengh product,the input voltage range:100-265vAC,the output voltage 12vDC & 24VDC.Matches superior lighting Canopy Lights, Garage light, LED Landscape Lights and Bollard Lights...

 Features


  1. IP67 design for indoor or outdoor installations
  2. Protections:Short circuit/Overload/Over temperature
  3. Cooling by free air convection
  4. 100% full load burn-in test
  5. Suitable for LED lighting
  6. Products through UL,CE,RoHS Certification
  7. 2 years warranty


 Product parameters


SPECIFICAION
MODEL SMT-012-060VW SMT-024-060VW SMT-036-060VW
OUTPUT DC VOLTAGE 12V 24V 36V
RATED CURRENT 5.0A 2.5A 1.66A
CURRENT RANGE 0~5.0A 0~2.5A 0~1.66A
RATED POWER 60W 60W 60W
RIPPLE&NOISE(max) 1.2V 1.2V 1.2V
voltage TOLERANCE 12V±5% 24V±5% 36V±5%
SETUP RISE TIME 80ms/110,220VAC 80ms/110,220VAC 80ms/110,220VAC
HOLD UP TIME(Typ.) 60ms/110,220VAC 60ms/110,220VAC 60ms/110,220VAC
INPUT VOLTAGE RANGE 90~135/170~265Vac 90~135/170~265Vac 90~135/170~265Vac
FREQUENCY RANGE 50~60Hz 50~60Hz 50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.) ﹥84% ﹥84% ﹥84%
AC CURRENT(Typ.) 0.5A/110V,220VAC 0.5A/110V,220VAC 0.5A/110V,220VAC
INRUSH CURRENT (Typ.) COLD START 30A/110,220VAC
PROTECTION Short circuit Protection type:recovers automatically after condition is removed
Overload overload protected@145-160% above peak rating
Over temperature Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT WORKING TEMP. -30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS UL, CE Mark(LVD),IP67
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC  IP-GND:1.5KVAC
EMC Test Standards EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE 1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
    capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
