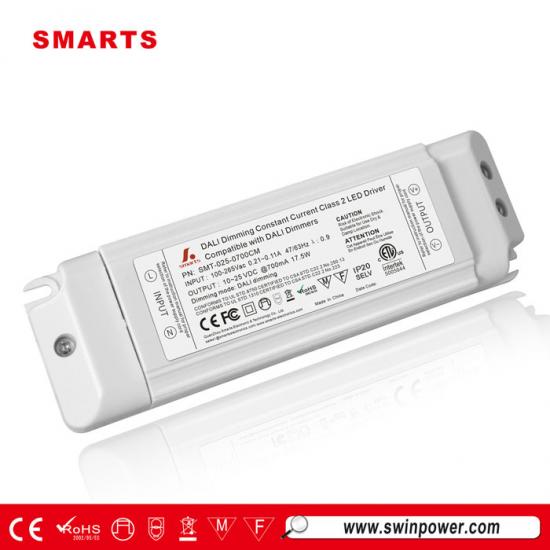

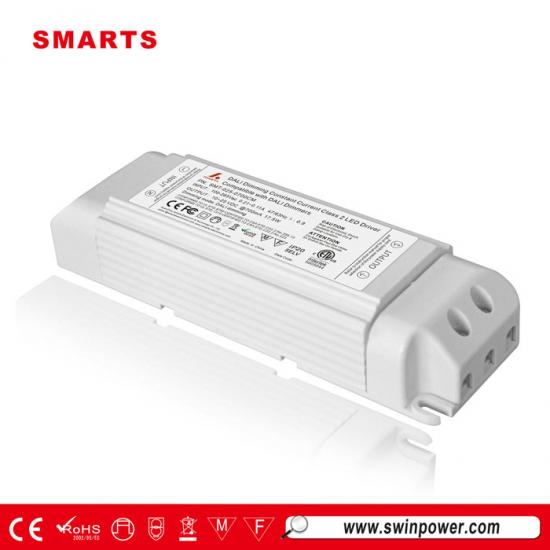

10-25vdc 700ma dali dimmable constant current power supply

Smarts have a item which is 10-25vdc 700ma 17.5dali dimmable constant current led power supply, it's ETL,CE,ROHS,FCC approval.Complies with international safety standards, and has a higher safety factor than ES's constant current waterproof power supply 700ma.
  • Brand:

    SMARTS
  • Item No.:

    SMT-025-0700CM
  • Input Voltage:

    100-265vac
  • Output Voltage:

    10-25vdc
  • Output Current:

    700ma
  • Working Mode:

    constant current
  • Dimming mode:

    dali dimmable
  • Size:

    140*45*28mm
  • Certification:

    CE,ETL ,FCC,RoHS
Products description

10-25vdc 700ma dali dimmable constant current power supply

Smarts have a series ETL/cETL,CE,FCC,ROHS listed dimmable constant current LED driver with dali dimming mode, and it's 100-276vac, could suit for North America,Canada and Europe.


  Feture


·Output constant current

 ·Range 100-265VAC

 ·Built-in PFC function, PF> 0.9

 ·Efficiency 86%

 ·Protections:short circuit/over current/over temperature

 ·Cooling by free air convection

 ·Dimming function:DALI dimmable

 ·Suitable for LED lighting applications by PWM output

 ·Compliance to worldwide safety regulations for lighting

 ·Suitable for dry/damp/wet locations

 ·5 years warranty



   Specification



Model

SMT-050-0300CM

SMT-050-0350CM

SMT-030-0500CM

SMT-025-0700CM

SMT-020-0900CM

Output

DC Voltage

30-50V

35-50V

15-30V

10-25V

10-20V

Voltage Accuracy

±0.3V

Rated current

0~300MA

0~350MA

0~500MA

0~700MA

0~900MA

Rated power

15.0W

17.5W

15W

17.5W

18W

Input

Voltage Range

100-265VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF≧0.9/220V

Full Load Efficiency(Typ.)

>86%(110,220V)

>86%(110,220V)

>85%(110,220V)

>85%(110,220V)

>85%(110,220V)

AC Current(Typ.)

0.96A(110,220V)

0.96A(110,220V)

1.042A(110,220V)

1.031A(110,220V)

1.031A(110,220V)

Leakage current

﹤0.35mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over Current

≦1.4*Iout

Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40~+50℃

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13 IP20

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (≧50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV)

Others

Weight

0.15Kg

Size

140*45*28mm(L*W*H)

packing

324*298*188(50PCS)CTN    145*47*35 mm for inner box

Notes

1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25℃of

ambient temperature.

2.  Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated

with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .
