DT6 DALI-2 & PUSH 24v 60w dimmable J-box led lighting driver Flicker-free

DALI 2 push Dimmable 24 volt constant voltage led transformer 60W Compatible with DALI 2 controllers Can realize centralized management and control of project lighting fixtures
  • Brand:

    SMARTS
  • Item No.:

    SMT-JB24060V-DP2
  • Input Voltage:

    100-277Vac
  • Output Voltage:

    12VDC/24VDC/36VDC/48VDC
  • Working Mode:

    Constant Voltage
  • Dimming mode:

    DALI 2&PUSH Dimmable
  • Size:

    202.5*114.2*40mm
  • Certification:

    UL
Products description

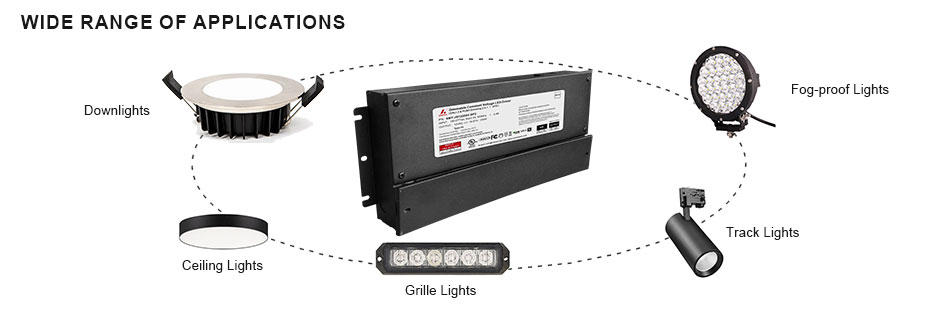

24v 60w dimmable led driver


DT6 DALI-2 & PUSH 24v 60w dimmable J-box led lighting driver Flicker-free


UL dali 2 dimmable 12v 24v led electronic driver 60W Equipped with protection mechanisms:Open circuit /short circuit/ over temperature/ over load.


  Specification

Model SMT-JB12060V-DP2 SMT-JB24060V-DP2 SMT-JB36060V-DP2 SMT-JB48060-DP2
Certificate UL/cUL/ FCC/ SELV / CE
Output DC Voltage 12V 24V 36V 48V
Voltage range(adjust by NFC) 12-13.5V 24-26V 36-38V 48-50V
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Rated current 5A 2.5A 1.67A 1.25A
Rated power 60W
Load Regulation ±2% ±1% ±1% ±1%
Input Voltage Range 100-277VAC
Frequency Range 47 - 63Hz
Power Factor (Typ.) @ full load PF≥0.98@120VAC     PF≥0.95@230VAC     PF≥0.92@277VAC
Efficiency(Typ.) @ full load 86%@120VAC    88%@230V/277VAC

86%@120VAC

88%@230V/277VAC

86%@120VAC

88%@230V/277VAC

86%@120VAC

88%@230V/277VAC

AC Current (Max.) 0.8A
Total harmonic value ≤15%
Surge current 20A, 50%, 220us @120VAC;  45A, 50% , 175us @230VAC  37A, 50% ,302us @277VAC
Leagkage current <0.5mA
Protection Over Load ≤120% ,hiccup mode, recover automatically after fault condition is removed
Over temperature Ambient temp. over 55℃±10℃, output will be off; recovers automatically after temp. drops.
Over Load ≤120% ,hiccup mode, recover automatically after fault condition is removed
Environment Working TEMP. -40 ~ +70℃ (see below derating curve)
Working Humidity 20 ~ 95%RH,non-condensing
Storage TEM.,Humidity -40 ~ +80℃,10 ~ 95%RH
TEMP.coefficient ±0.03%/℃(0 ~ 50℃)
Vibration 10 ~ 500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety & EMC Safety standards EN61347-1 EN61347-2-13(EU) & UL8750(US) & UL1310
Withstand voltage I/P-O/P:3.75KVAC   I/P-FG:1.5KVAC  O/P-FG:0.5KVAC (EU)
I/P-O/P:1.80KVAC   I/P-FG:1.5KVAC  O/P-FG:0.5KVAC (US)
Isolation resistance I/P-O/P:100MΩ/ 500VDC/ 25℃/ 70%RH
EMC Emission EN55015  EN61000-3-2-3(EU)≥50% Load  &  FCC Part 15 B (US)
Others Net Weight 0.375Kg
Dimension 202.5*114.2*40mm (L*W*H)
Packing 280*210*160mm      20pcs /CTN
Notes 1.All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature.
2.Under low input voltage, reduced output is required to ensure a long life.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


24v 60w dimmable led driver


  Mechanical Specification



1. Input 3*18AWG,Black cable (L), White cable (N) and Green cable (G).

2. Output 2*16AWG (12V) 2*18AWG (24V, 36V,48V) Black cable (V+) connect to positive(+), Red cable(V-) connect to negative(-).

3. Dimming wire 2*18AWG Purple cable(L), Pink cable (N).

Warm tips Any other requests for cable, we can customized.

Dimming cable

Dimming electronic cable 3*18AWGBrown DA/N and Purple DA/L (No polar) connected to the DALI BUS when use DALI function.

Brown (N) is connected to AC (N) while Purple (L) and pink connected to Push dim switch dimmer( L) when use Push function.

※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.

Note:  there is external antenna at output side.  Don't disassemble!



 Dimming Operation




Note: For DALI Dimming Wiring Diagram 3, please noted that only one DALI power is need in the DALI bus, so no extra DALI power is needed if the Master or Dimmer already includes the DALI Power.



 Dimming Operation


The default address for the DALI-2 LED driver is 001.

Address settings device:

Address settings:

① RDM setting address:

Set the address by the RDM device. For detailed operation, please refer to RDM device instruction manual.

② NFC setting address:

The DALI-2 led drivers’ address can be read and written by a mobile with NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DALI-2 LED drivers


Adjust output voltage Operation

Adjust output voltage slightly for DALI-2 LED drivers

1) The driver output voltage can be read and written by a mobile with NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DALI-2 LED drivers

2) Voltage range: level 1~10, each level is 0.2V. The default output voltage level is 1

Rated Vol.

Level 1

Level 2

Level 3

Level 4

Level 5

Level 6

Level 7

Level 8

Level 9

Level 10

12V

12.00V

12.16V

12.32V

12.48V

12.64V

12.80V

12.96V

13.12V

13.28V

13.50V

24V

24.00V

24.22V

24.44V

24.66V

24.88V

25.1V

25.32V

25.54V

25.66V

26.00V

36V

36.00V

36.22V

36.44V

36.66V

36.88V

37.10V

37.32V

37.54V

37.66V

38.00V

48V

48.00V

48.44V

48.44V

48.66V

48.88V

49.10V

49.32V

49.54V

49.66V

50.0V


Simple operation about DALI-2 LED driver address reset and adjusting output voltage slighting by a mobile with NFC APP (set NFC) or NFC handheld device (NFC read & write device: NFC-RW)

Ø Mobilephone NFC APP setting:
