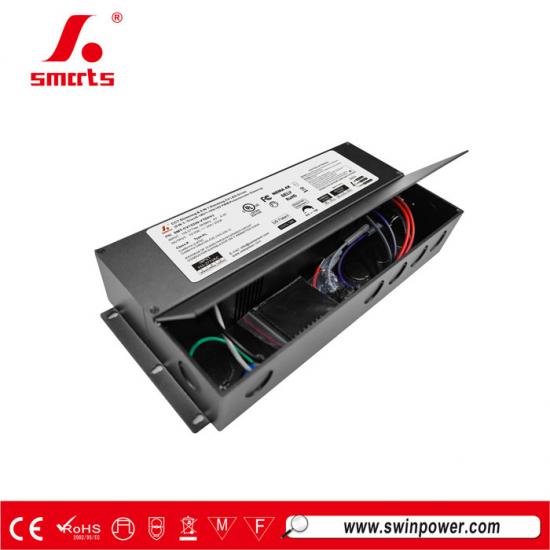

UL high powered waterproof triac 0 10v dimmable led power supply 12v/24v 300w

High power 300W led 5 in 1 dimming driver can achieve 100%-0.01% flicker free dimming, compatible with DC-DC design led lamps, such as MR16, PAR, LED strips/tapes
  • Brand:

    SMARTS
  • Item No.:

    SMT-CV12300-VTDHV3
  • Input Voltage:

    100-277Vac
  • Dimming Mode:

    CCT & 5 in 1(Triac 0-10V 1-10V Registor 10V PWM) Dimmable
  • Output:

    Dual channel (2 colors)
  • Working Mode:

    Constnat Voltage LED Driver
  • Shape & Size:

    J-BOX Driver
  • Size:

    289*132*49mm
  • Weight:

    2.15kg
  • Certification:

    UL
  • Warranty:

    7 Years
Products description


UL high powered waterproof triac 0 10v dimmable led power supply 12v/24v 300w


277vac universal input voltage led driver 12v 300W Compatible with Triac/0-10V/1-10V/10V PWM/Potentiometer various dimming modes, passed UL certification, complies with global lighting safety regulations, suitable for North American commercial lighting projects



  Specifications


Model Number SMT-CV12300-VTDHV3 SMT-CV24300-VTDHV3
OUTPUT
Rated Power 300W 300W
Rated Voltage 12V 24V
Rated Current 25A   CW:12.5A*2CH 12.5A   CW:6.25A*2CH
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
INPUT
Voltage Range 100-277V
Frequency Range 47-63Hz
Power Factor(typ.) 0.98@120VAC  0.95@277VAC  Full load
Total Harmonic Distortion THD< 20%@120VC/277VAC;
Efficiency(Typ.) 86%@120VAC   88%@277VAC 88%@120VAC   92%@277VAC
AC Current(Typ.) 3.4A
Inrush Current(Typ.) 20A, 50%, 1.9ms @120VAC;   35A, 50% 1.9ms @277VAC
Leakage Current <0.5mA/ 120VAC
PROTECTION
Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Load ≤120% shut down o/p voltage, re-power on to recover after fault condition removed
Over Temperate 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
ENVIRONMENT
Working Temp. Tcase=-40 ~ +60 ℃
Max. Case Temp. Tcase=+90℃
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards UL8750, CSAC22.2 No. 250.0-08
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission Compliance to FCC part 15  Subpart B
OTHERS
Dimension 289x132x49mm (L*W*H)  N.W: 2.15kg
Packing 10pcs/CTN  G.W:23KG    SIZE:340*295*295 mm
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Mechanical Specification

  Dimming Operation


  Compatible Lighting Type

smarts new dimming led power supply original clamshell junction box design, built-in knob to fine-tune the output voltage, compatible with pwm and step-down output, suitable for dual-channel CCT cold and warm dimming led strips
